Description

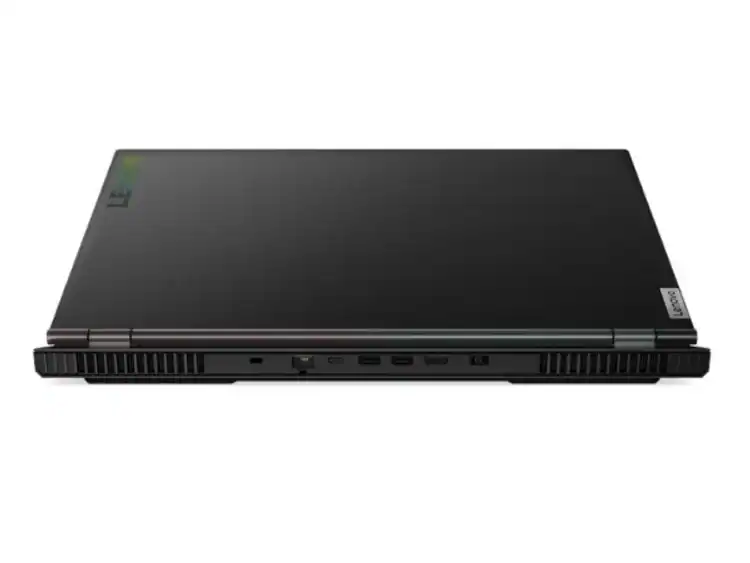

LENOVO LEGION 5 AMD RYZEN 7 4800H 16GB 512GB SSD 17.3” NVIDIA GEFORCE RTX 2060 8GB WIN11H

Region
NA
PERFORMANCE
Processor
AMD Ryzen™ 7 4800H (8C / 16T, 2.9 / 4.2GHz, 4MB L2 / 8MB L3)
Graphics
NVIDIA® GeForce RTX™ 2060 6GB GDDR6
Chipset
AMD SoC Platform
Memory
2x 8GB SO-DIMM DDR4-3200
Memory Slots
Two DDR4 SO-DIMM slots, dual-channel capable
Max Memory
Up to 16GB DDR4-3200 offering
Storage
512GB SSD M.2 2280 PCIe® 3.0×4 NVMe® + 1TB HDD 7200rpm 2.5″
Storage Support
HDD/SSD mode: up to two drives, 1x 2.5″ HDD + 1x M.2 SSD
• 2.5″ HDD up to 2TB
• M.2 2242 SSD up to 512GB
• M.2 2280 SSD up to 1TB
Storage Slot
HDD/SSD mode: one 2.5″ drive slot + one M.2 slot
• One 2.5″ drive slot, supports 2.5″ SATA HDD
• One M.2 2280 PCIe® Gen 3×4 slot, supports M.2 2242/2280 SSD
Card Reader
None
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers
Stereo speakers, 2W x2, Dolby Atmos® for gaming, Harman Speakers
Camera
720p with Privacy Shutter
Microphone
2x, Array
Battery
Integrated 60Wh
Power Adapter
230W Slim Tip (3-pin)
DESIGN
Display
15.6″ FHD (1920×1080) IPS 300nits Anti-glare, 144Hz, 100% sRGB, Dolby Vision®, DC dimmer
Touchscreen
None
Keyboard
White Backlit, English (US)
Touchpad
Buttonless Mylar® surface multi-touch touchpad
Case Color
Phantom Black
Surface Treatment
Painting
Case Material
PC + ABS (Top), PC + ABS (Bottom)
Dimensions (WxDxH)
363.06 x 259.61 x 23.57-26.1 mm (14.3 x 10.22 x 0.93-1.03 inches)
Weight
2.46 kg (5.42 lbs)

CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 6 11ax, 2×2 + BT5.0
Ethernet
100/1000M
Standard Ports
1x USB-C® 3.2 Gen 1 (support data transfer and DisplayPort™ 1.2)
1x USB 3.2 Gen 1 (Always On)
3x USB 3.2 Gen 1
1x HDMI® 2.0
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Power connector

1 year awrranty
