Description

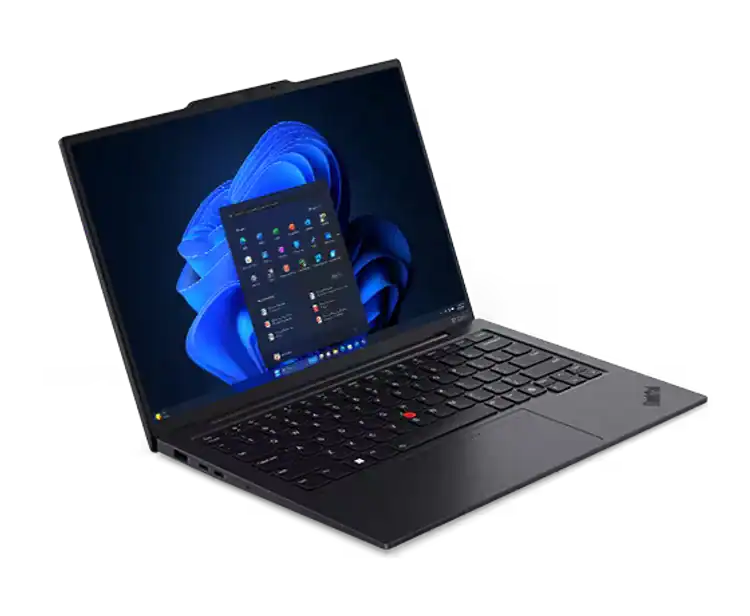

LENOVO THINKPAD X1 CARBON GEN12 CORE ULTRA 7 165U VPRO 32GB RAM 512GB SSD 14″ WUXGA TOUCH SCREEN WIN11 PRO

Processor

Intel® Core™ Ultra 7 165U Processor with vPro® (E-cores up to 3.80 GHz P-cores up to 4.90 GHz with Turbo Boost, 12 Cores, 14 Threads, 12 MB Cache)

Operating System
Windows 11 Windows 11 Home

Graphics
Integrated Intel® Graphics

Integrated Intel® Arc™ Graphics

Memory
32gb ddr5 Up to 64GB LPDDR5X 6400MHz

Storage
512nvme Up to 2TB PCIe Gen4 Performance SSD

Battery
57Whr battery with optimized power distribution for longer life unplugged

Rapid Charge (60 minutes = 80% capacity), requires 65W or higher adapter

Audio
Dolby Atmos®

2 x speakers

2 x 360-degree quad-array microphones

Dolby Voice® certified for professional conferencing solution

Camera
1080p FHD & infrared (IR) with webcam privacy shutter

2160p UHD RGB+IR with Computer Vision

Connectivity
Ports/Slots
2 x USB-C® (Thunderbolt™ 4, USB 40Gbps)

2 x USB-A (USB 5Gbps)

Headphones / mic combo

HDMI 2.1 (supports resolution up to 4K@60Hz)

Optional: Nano SIM slot (Available Spring 2024)

* USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.

Wireless
Intel® WiFi 6E* AX211 802.11AX (2 x 2)

Bluetooth® 5.3

WWAN Optional : Quectel EM160R-GL 4G LTE CAT16

WWAN Optional : Quectel RM520N-GL 5G Sub6

vPro®: On vPro® Processors

* 6GHz WiFi 6E operation is dependent on the support of the operating system, routers/APs/gateways that support WiFi 6E, along with the regional regulatory certifications and spectrum allocation.

Supported Docking
Thunderbolt™ Dock

USB-C® Dock

Design
Display
14ʺ WUXGA (1920 x 1200) IPS, touchscreen, antiglare, low power, 400nit, 100% sRGB, Eyesafe®

14ʺ WUXGA (1920 x 1200) IPS, antiglare, low power, 400nit, 100% sRGB, Eyesafe®

14″ 2.8K (2880 x 1800), OLED, Anti-Glare/Anti Reflection/Anti Smudge, Non-Touch, HDR 500, 100%DCI-P3, 400 nits, 120Hz, Low Blue Light

14″ 2.8K (2880 x 1800), OLED, Anti-Glare/Anti Reflection/Anti Smudge, Touch, HDR 500, 100%DCI-P3, 400 nits, 120Hz, Low Blue Light

14″ WUXGA (1920 x 1200), IPS, Anti-Glare, Non-Touch, 100%sRGB, 500 nits, 60Hz, ePrivacy Filter

Dimensions (H x W x D)
14.96mm x 312.8mm x 214.75mm / 0.59ʺ x 12.31ʺ x 8.45ʺ

Weight
Starting at 1.09kg / 2.42bs

Keyboard
ThinkPad TrackPoint Keyboard (1.5mm travel)

Spill-resistant

Glass TrackPad with 3 buttons (120mm / 4.72″)

Backlit with white LED lighting

Air intake keys

Dual-function TrackPoint: navigate the cursor or double-tap to open TrackPoint Quick Menu

Color
Eclipse Black with Carbon Fiber Weave Top Cover

Eclipse Black with Classic Black Top Cover

Sustainability
Material

Low-temperature solder on memory modules, SSD board, & fingerprint module

Forest Stewardship Council® certified plastic-free packaging with bamboo-sugar cane packaging & standard cushions

Certifications / Registries
ENERGY STAR® 8.0

EPEAT® Gold, where applicable*

Eyesafe®

Forest Stewardship Council® (FSC) certified packaging

Intel® Evo™

MIL-SPEC 810H

TCO 9

Zoom Certified – Premium Laptop

*Visit www.epeat.net for registration status by country.

Other Information
ThinkShield Security
Computer Vision Human Presence Detection (requires optional 8MP & IR Camera)

Discreet Trusted Platform Module (dTPM) 2.0

Facial recognition login via Windows Hello (requires IR camera)

Fingerprint reader (match-on-chip) on keyboard

Firmware Shield

Intel® Threat Detection Technology

Intel vPro® security (select models)

Kensington Nano Security Slot™

Microsoft Secured-core PCs (select models)

Optional: PrivacyGuard

Optional: PrivacyAlert with Glance app

Webcam privacy shutter
