Description

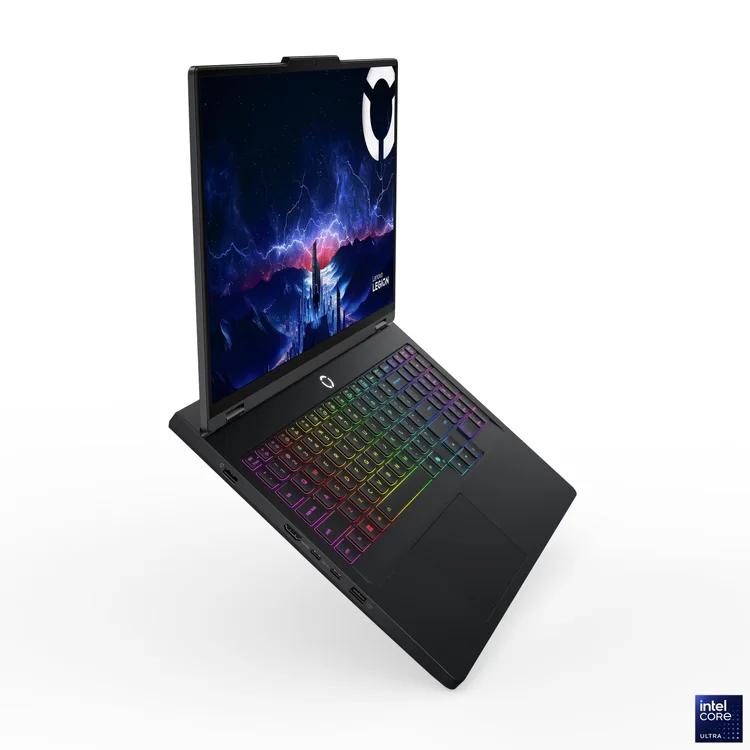

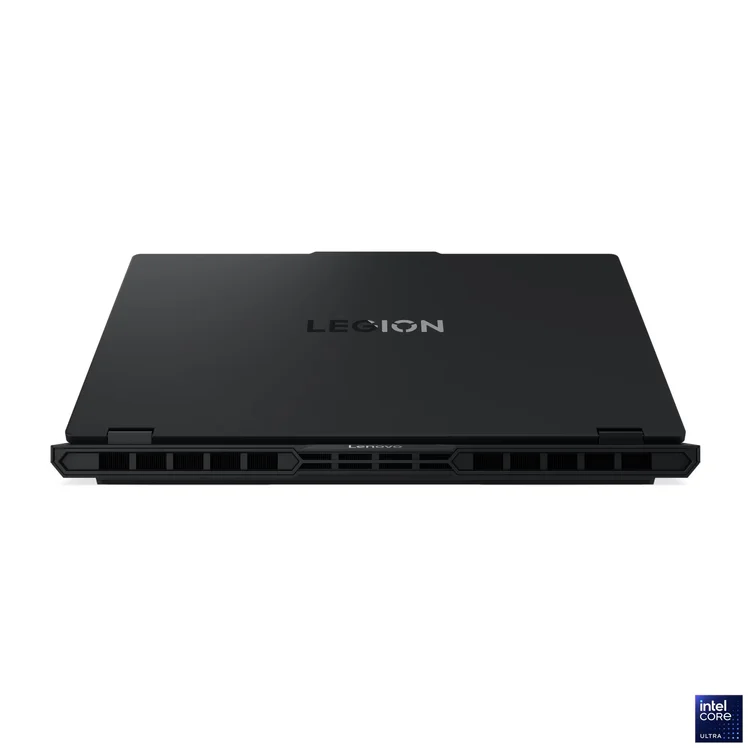

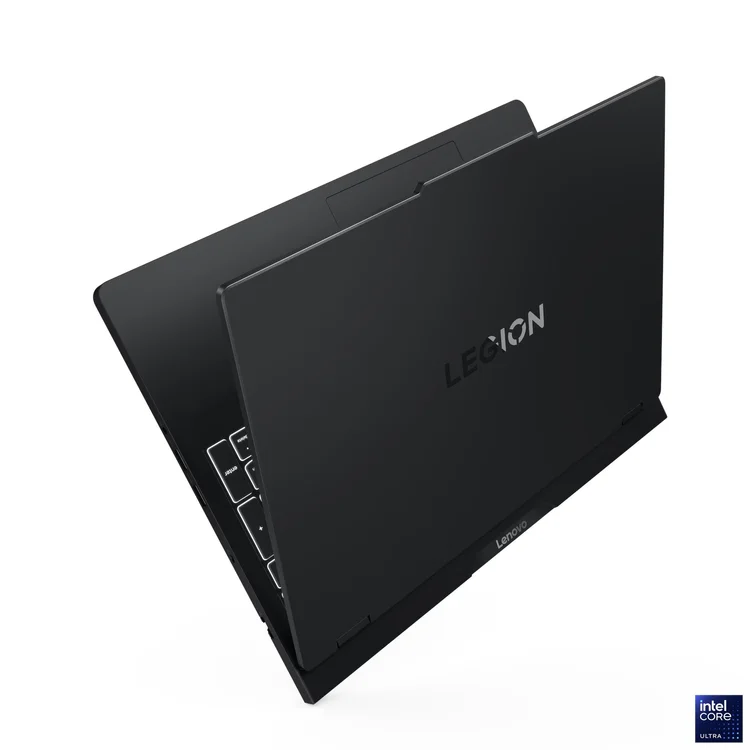

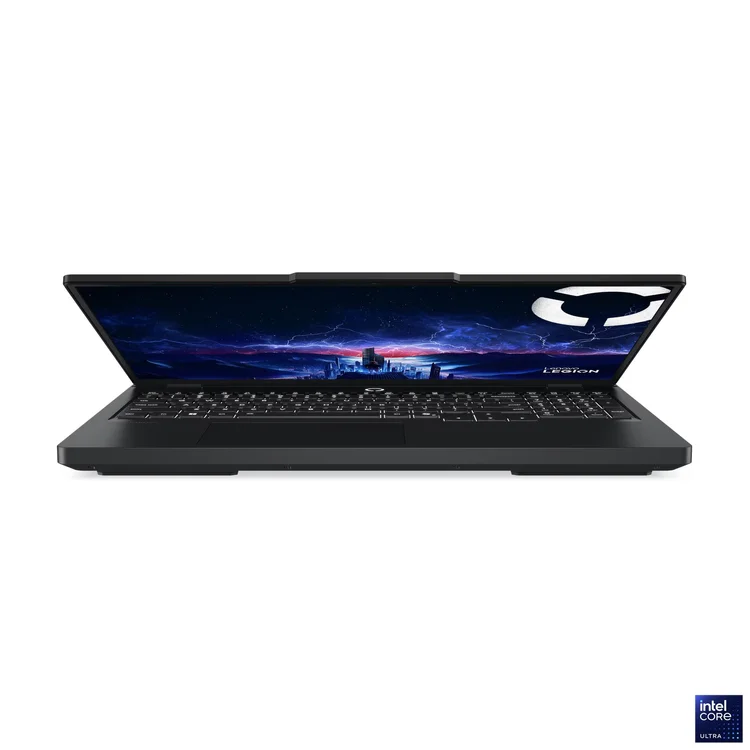

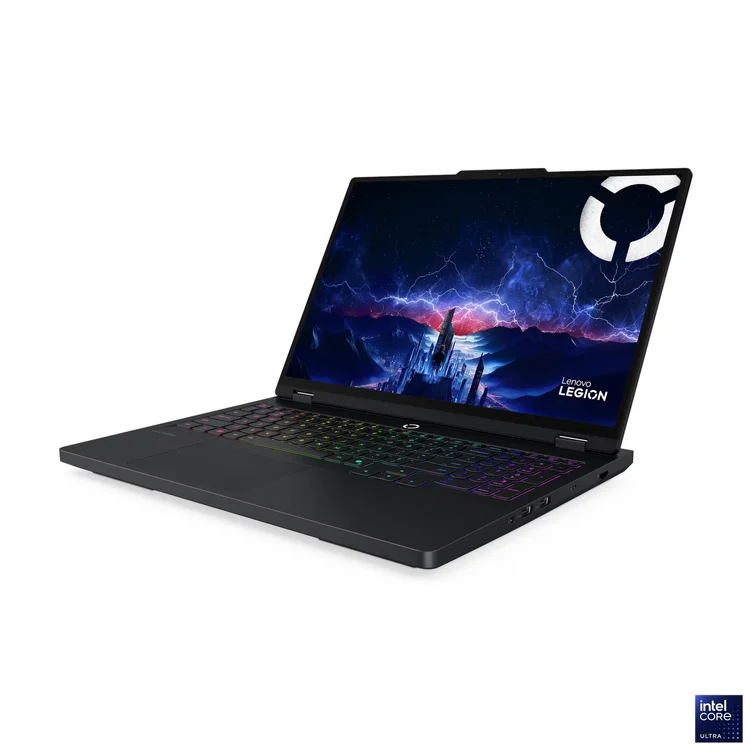

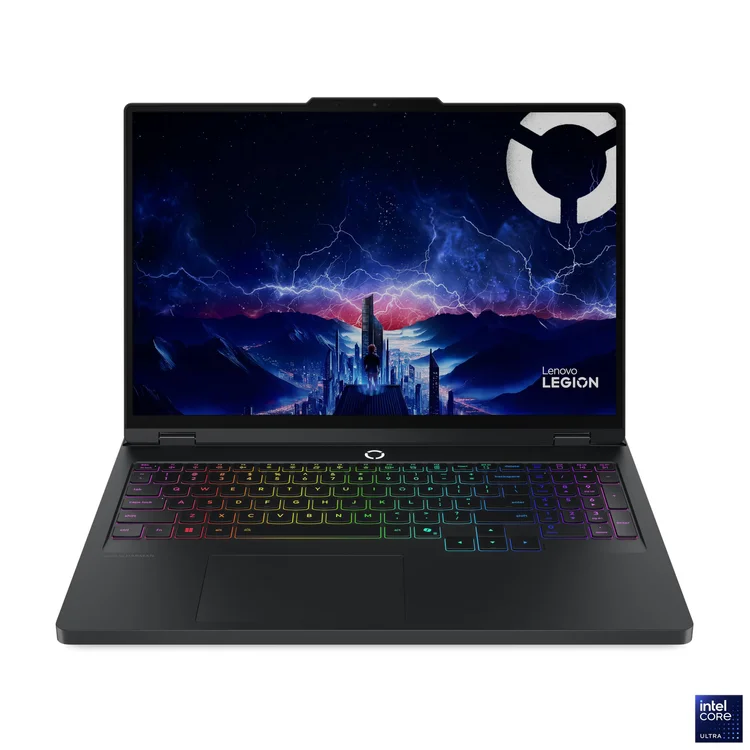

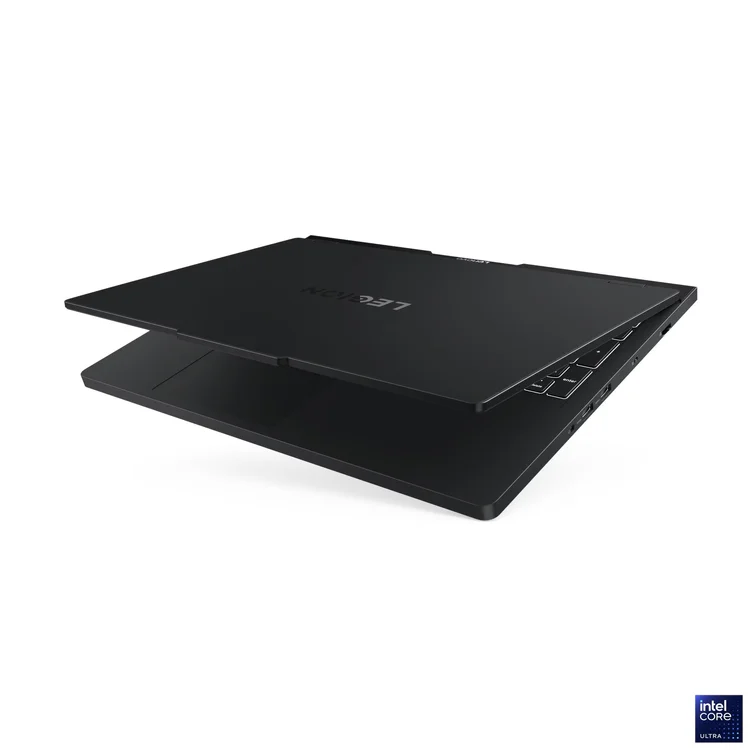

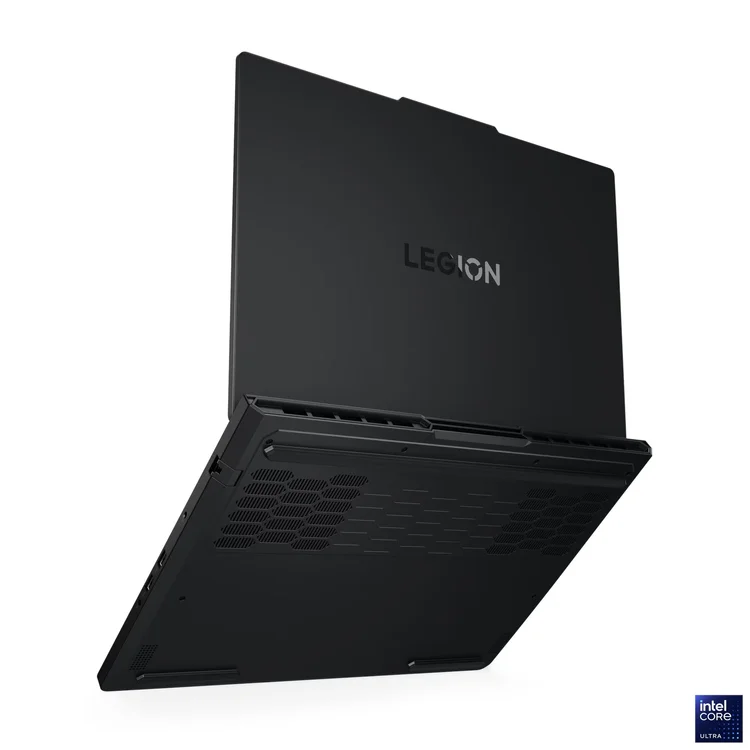

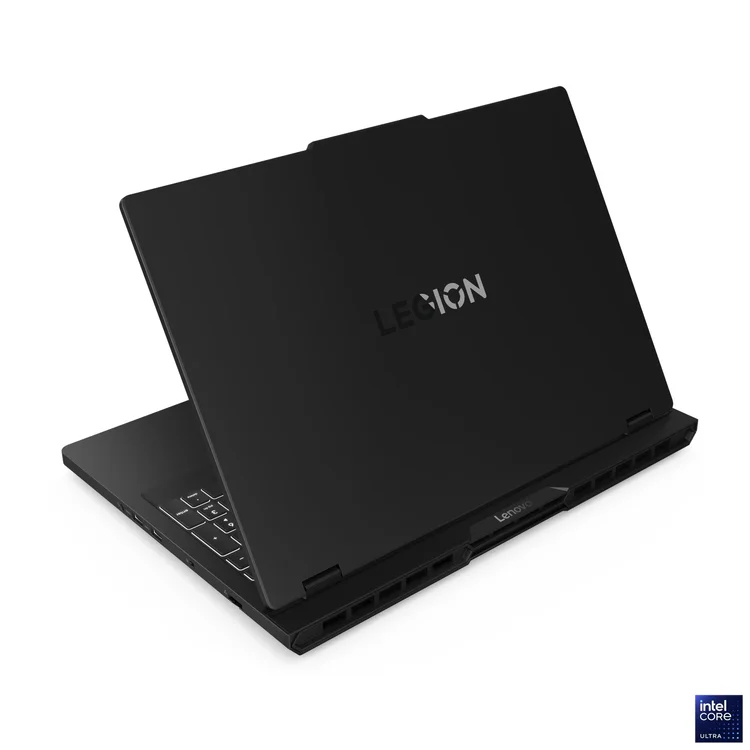

LENOVO LEGION 5 CORE ULTRA 9 275HX 16GB RAM 1TB SSD 15.1″ OLED QHD 2.5K 165HZ NVIDIA RTX 5070 8GB
WIN11 1 YEAR WARRANTY

Processor
Intel® Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB
AI PC Category
AI-Powered Gaming PC
NPU
Integrated Intel® AI Boost, up to 13 TOPS
Graphics
NVIDIA® GeForce RTX™ 5070 8GB GDDR7, Boost Clock 2347MHz, TGP 115W, 798 AI TOPS
Chipset
Intel® HM870 Chipset
Memory
1x 16GB SO-DIMM DDR5-5600
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 32GB DDR5-5600 offering
Storage
1TB SSD M.2 2242 PCIe® 4.0×4 NVMe®
Storage Slot
Two M.2 2280 PCIe® 4.0 x4 slots
Max Storage Support
Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB each
Optical
None
Card Reader
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
Microphone
2x, Array
Camera
5.0MP with E-shutter
Battery
80Wh
Power Adapter
245W Slim Tip (3-pin)
Special Features
AI Chip: LA3
DESIGN
Display
15.1″ WQXGA (2560×1600) OLED 1000nits (peak) / 500nits (typical) glossy, 100% DCI-P3, 165Hz, Dolby Vision®, DisplayHDR™ True Black 600
Touchscreen
None
Screen-to-Body Ratio
OLED models: 90% AAR (active area ratio)
Color Calibration
Factory Color Calibration
Pen
Pen Not Supported

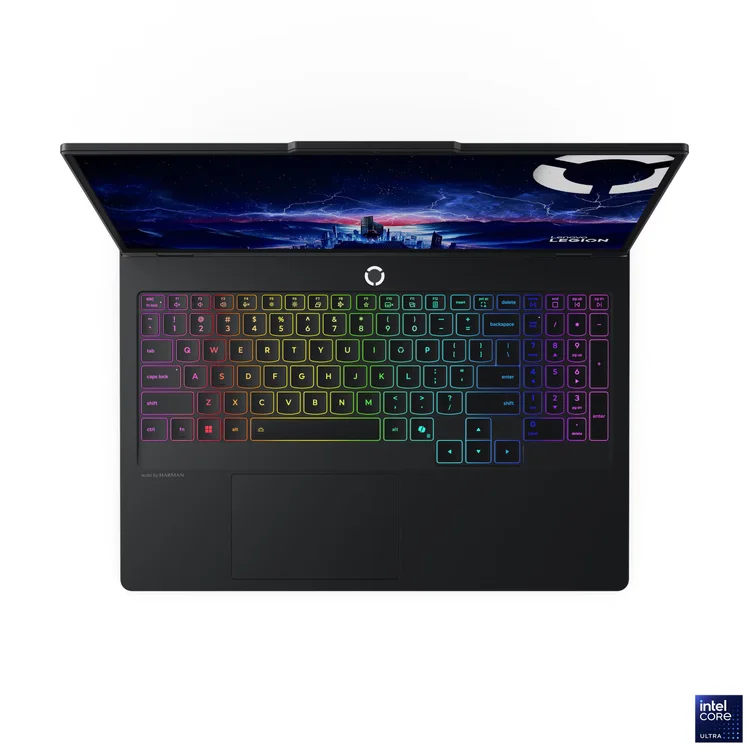

Keyboard
24-Zone RGB Backlit, English
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH)
344.9 x 255.35 x 19.95-21.54 mm (13.58 x 10.05 x 0.79- 0.85 inches)
Weight
Starting at 1.9 kg (4.19 lbs)
Case Color
Eclipse Black
Case Material
Aluminium (Top), PC-ABS (Bottom)
Surface Treatment
Aluminium Stamping (Anodized with Sandblasting)
SOFTWARE
Operating System
Windows® 11 Home, English
Bundled Software
Office Trial + Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 7, 802.11be 2×2 + BT5.4
WWAN
Non-WWAN
Ethernet
100/1000M (RJ-45)

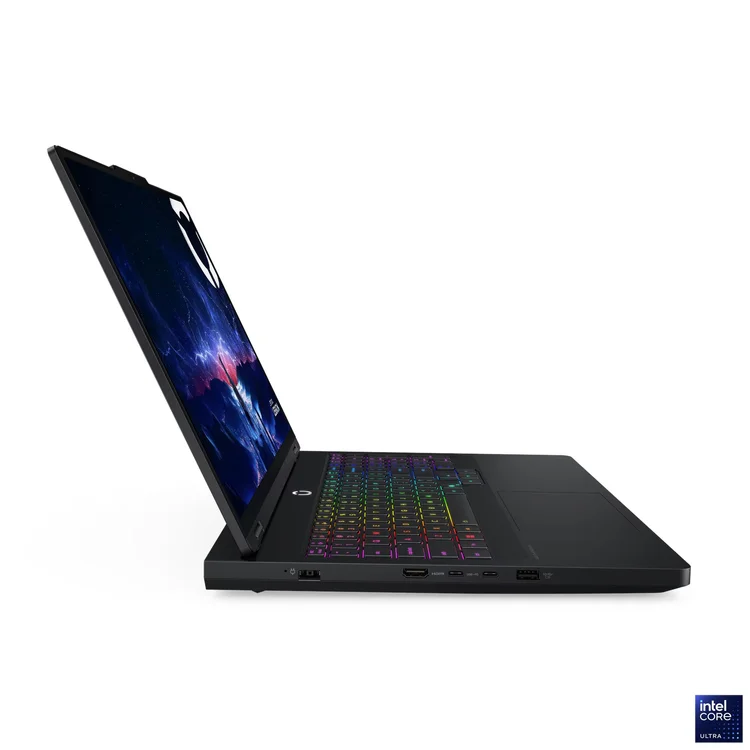

Standard Ports
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1
1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 2.1
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Power connector

1 YAER WARRANTY
