Description

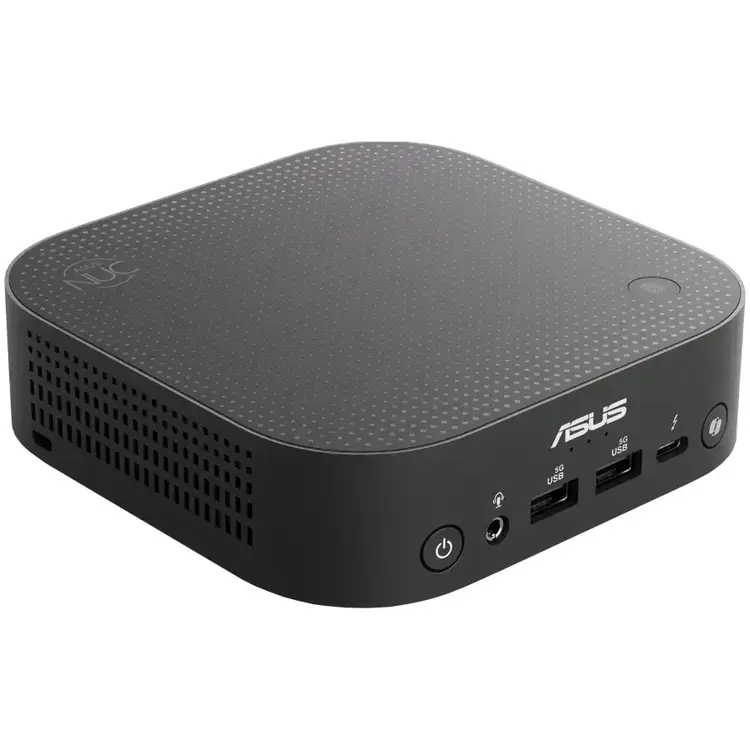

ASUS NUC 14 PRO AI , Ultra 7-258V, Intel Arc graphics, 32G, 1TB, WiFi 7, BT, Win 11 PRO NextGen
Premium, with DTPM, Mini-PC (L10), UK Cord
The ASUS NUC 14 Pro AI (Intel Core Ultra 7-258V) is a premium, ultra-compact mini PC engineered for high-density local AI processing, enterprise security, and efficient daily computing. Driven by Intel’s “Lunar Lake” architecture, this configuration pairs advanced processing logic with an ultra-small footprint under 0.6 liters.
Key Specifications Overview
- Processor (CPU): Intel Core Ultra 7 258V (8 Cores, 8 Threads) featuring a specialized, low-power architecture built for multi-engine computing.
- Graphics (GPU): Integrated Intel Arc 140V Graphics (Xe2 architecture), providing up to 2x the graphical throughput of older Intel Iris Xe platforms.
- AI Engine (NPU): Intel AI Boost dedicated Neural Processing Unit, pushing up to 48 NPU TOPS and 120 total system TOPS for smooth local AI execution.
- Memory: 32GB on-board, dual-channel LPDDR5x RAM clocking at an ultra-fast 8533 MT/s. Note: The memory is integrated directly into the processor package and cannot be upgraded later.
- Storage: 1TB PCIe Gen 4×4 M.2 2280 NVMe SSD. The system uses a toolless chassis design for very fast manual drive access and replacement.
- Wireless: Next-generation Intel Wi-Fi 7 (802.11be) alongside Bluetooth 5.4. [
- Security: Hardware-level Discrete Trusted Platform Module (dTPM 2.0) chip for secure encryption keys, paired with an integrated fingerprint reader on the chassis for Windows Hello authentication.
- Operating System: Windows 11. [
Core Physical and Connectivity Layout [
The chassis balances massive bandwidth expansion with space-saving properties, measuring only 130 x 130 x 34 mm. [
- Front-Facing I/O: One dedicated Microsoft Copilot button, one fingerprint registration scanner, two USB 3.2 Gen 1 Type-A ports, one high-speed Thunderbolt 4 port (with DisplayPort 2.1 mapping), and a 3.5mm combo audio jack.
- Rear-Facing I/O: One second Thunderbolt 4 port, two high-bandwidth USB 3.2 Gen 2 Type-A ports, one HDMI 2.1 output port, and an enterprise-grade 2.5G RJ45 Ethernet LAN port.
- Built-in Multimedia: Features a physical internal microphone array and an integrated smart-amp mono speaker, specifically designed to accept local voice assistant commands without external peripherals.
Target Use Cases
This high-end mini PC excels as a secure enterprise workstation due to the dTPM and Windows 11 Pro architecture. It is similarly well-suited for developer local AI testing, compact 4K multi-display setups, and heavy office multitasking while keeping noise and power consumption
