Description

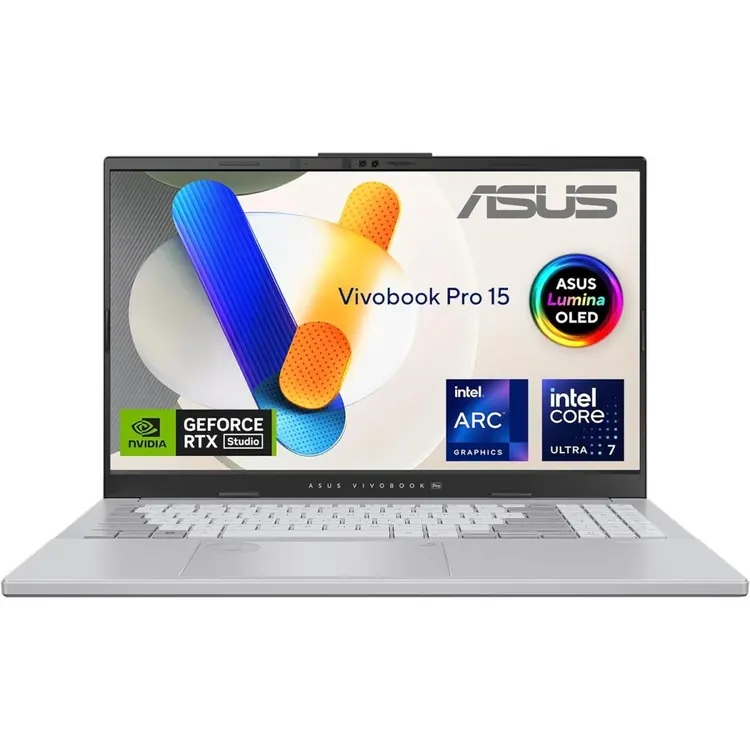

ASUS VIVOBOOK N6506MV CORE ULTRA 7 155H 16GB 1TB NVME 15.6″ 3K OLED 120HZ RTX 4060 8GB / SILVER
- Processor (CPU): Intel Core Ultra 7 155H
- 16 Cores / 22 Threads (6 Performance cores, 8 Efficient cores, 2 Low-Power Efficient cores)
- Max Turbo Frequency: Up to 4.8 GHz
- Cache: 24MB Intel Smart Cache
- Neural Processor (NPU): Intel AI Boost NPU (Up to 11 TOPS for dedicated local AI task acceleration)
- Graphics (GPU):
- Dedicated: NVIDIA GeForce RTX 4060 Laptop GPU (8GB GDDR6 dedicated VRAM)
- Integrated: Intel Arc Graphics
- Optimization: Dedicated physical MUX Switch to bypass integrated graphics for maximum gaming frame rates, 4, 5
- Total Thermal TDP: Up to 125W combined performance capacity under Full Speed mode. [1, 2]
🧠 Memory & Storage Capacity
- System Memory (RAM): 16GB DDR5 5600MHz
- Architecture: 8GB soldered on-board + 8GB removable SO-DIMM module
- Upgrade limit: Supports up to 24GB total capacity
- Internal Storage: 1TB M.2 NVMe PCIe 4.0 Performance SSD
- Expansion Slots: 2x M.2 2280 PCIe 4.0 x4 slots (Supports adding a secondary single-sided SSD). [
🖥️ Display & Visual Quality [
1]
- Panel Technology: 15.6-inch ASUS Lumina OLED screen
- Native Resolution: 3K (2880 x 1620 pixels), 16:9 aspect ratio
- Refresh & Response: 120Hz refresh rate with a ultra-fast 0.2ms gray-to-gray response time
- Brightness Levels: 400 nits typical SDR; 500 nits HDR peak brightness
- Color Accuracy: 100% DCI-P3 wide color gamut, PANTONE Validated, VESA Certified Display HDR True Black 600
- Eye Care Safety: TÜV Rheinland-certified for 70% reduced harmful low blue light emissions.
🔌 Physical Interfaces & Input Controls
- Left-Side Ports:
- 2x USB 3.2 Gen 1 Type-A []
- Right-Side Ports:
- 1x Thunderbolt 4 (Supports high-speed display out and up to 100W Power Delivery)
- 1x USB 3.2 Gen 2 Type-C (With DisplayPort and Power Delivery support)
- 1x HDMI 2.1 FRL output port
- 1x Standard SD 4.0 Media Card Reader
- 1x 3.5mm Headphone/Microphone Combo Audio Jack
- 1x RJ45 Gigabit Ethernet port
- 1x DC-in Power Connector input
- Keyboard & Trackpad: Full-sized chiclet layout keyboard with backlight and integrated Numpad
- Creative Tooling: Physical ASUS DialPad embedded into the top-left section of the touchpad for custom dial operations in apps like Adobe Photoshop and Premiere Pro.
🔋 Power, Build, & Multimedia
- Battery Capacity: 75 Watt-Hour (Wh), 4-cell Lithium-Ion configuration [
- Power Supply Adapter: 200W high-power AC output adapter [
- Audio & Hardware Sound: Stereo speakers tuned by Harman/Kardon, utilizing multi-dimensional Dolby Atmos surround sound and built-in array microphones
- Wireless Connections: Dual-band Wi-Fi 6E (802.11ax) paired with Bluetooth 5.3
- Camera Hardware: 5.0 Megapixel high-definition webcam featuring an Infrared (IR) sensor for instant Windows Hello facial logins, combined with a manual physical privacy shield shutter [
- Chassis Color & Build: Finished entirely in sleek Cool Silver
- Structural Dimensions: 35.57 x 23.53 x 1.99 cm (14″ x 9.26″ x 0.78″)
- Total Physical Weight: Super lightweight at 1.80 kg
- 1 YEAR WARRANTY
