Description

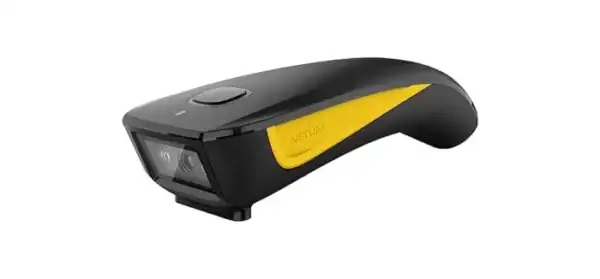

BARCODE READER C750 BLUETOOTH 2D PORTABLE

• The imager Barcode Scanner is equiped with advanced CMOS sensor, which can easily capture 1D/ 2D（QR/ PDF417/ Data Matrix,etc） bar codes from paper and screen, such as computer monitor, smartphone or tablet, effectively compensate for the problem that laser scanner can not identify screen code.
• Physical power switch: save energy in case of error operation.
• The Pocket bar code scanner comes with 3-in-1 Connection Design：Compatible with Bluetooth Function; 2.4G Wireless connection receiver; Wired connection. Easily connected with your laptop, PC, mobile phone, tablet, iphone, ipad, POS. Work with Windows XP/7/8/10, Mac OS, Windows Mobile, Android OS, iOS
• Manual Scan & Auto-sensing Scan & Continuous Scan. 1200mAh battery ensures 20 hours of continuous handsfree scanning, no pressing the button for efficiency.
• Two upload mode :Instant upload mode / Storage mode. Internal offline storage supports up to 100,000 barcodes in offline storage mode. Scan and store barcode when far away from the receiver, and then batch upload the data to your device when you need it.

• • Scanning Engine: CMOS Area Imager with a Fast Global Shutter and auto-exposure
  • Sensor Resolution: 640 × 480 pixels
  • Illumination: White LED
  • Aiming Element: Red LED
  • Minimum Resolution: 1D ≥ 4 mil, 2D ≥ 5 mil
  • Print Contrast Signal (PCS): ≥ 20% minimum reflective difference
  • Scan Angles: Roll: 360°, Pitch: ±55°, Skew: ±55°
  • Field of View (FOV): 48° Diagonal, 40° Horizontal, 30° Vertical
  • Typical Depth of Field (Focus Range):
    • • Code 39 (5 mil): 40 mm – 100 mm
      • PDF417 (6.67 mil): 30 mm – 140 mm
      • Data Matrix (10 mil): 50 mm – 100 mm
      • EAN-13 (13 mil): 50 mm – 220 mm
      • QR Code (20 mil): 25 mm – 240 mm

• • Triple-Mode Connectivity: Bluetooth, 2.4GHz RF Wireless, and USB Type-C Wired.
  • Bluetooth Versions: Backward compatible supporting Bluetooth 2.0, 3.0, 4.0, and 4.2 protocols.
  • Bluetooth Profiles: HID Mode (virtual keyboard), BLE (Bluetooth Low Energy), and SPP (Serial Port Profile).
  • Wireless Operational Range:
    • • 2.4GHz Mode: Up to 50–65 meters line-of-sight; ~15 meters in obstructed environments.
      • Bluetooth Mode: Up to 20 meters line-of-sight; ~10 meters in obstructed environments.

• • Internal Battery: 1200mAh Lithium-ion rechargeable battery.
  • Battery Endurance: Up to 20 hours of continuous scanning (~10,000 to 20,000 total scans per charge).
  • Charging Interface: USB Type-C.
  • Charging Input Power: 5V DC ±5% at 2A.
  • Full Charge Time: 3 to 4 hours from empty.
  • Operating Current: 125mA.
  • Standby Current: 0.6μA (Ultra-low sleep draw).
  • Sleep Timeout: Default 3 minutes idle (Configurable via programming barcodes).

• • Data Storage Capacity: 256KB internal flash buffer holding up to 100,000 offline barcodes
  • Scan Modes: Manual Key Trigger, Continuous Scan, Auto-Sensing / Motion Induction.
  • Data Formatting: Customizable data editing including adding custom Prefixes/Suffixes, deleting characters, changing capitalization, and toggling audio beep tones.
  • Mainstream System Languages: English, German, French, Italian, Spanish, and Japanese.
  • 1D Symbologies Decoded: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite, Code 11, Industrial 2 of 5, Standard 25, Matrix 2 of 5.
  • 2D Symbologies Decoded: QR Code, Micro QR, Data Matrix, PDF417, MicroPDF417, Aztec Code, Maxicode, Hanxin Code.

• Dimensions: 125 mm × 25 mm × 41 mm (4.88″ × 1.61″ × 1.02″).
• Weight: ≈ 72 grams (2.5 oz) device only.
• Enclosure Structural Material: High-impact ABS plastic.
• Environmental Sealing: IP42-rated dust and splash resistance.
• Operating Temperature: -10°C to 50°C (14°F to 122°F).
• Storage Temperature: -20°C to 70°C (-4°F to 158°F).
• Relative Humidity: 5% to 95% non-condensing.
• Ambient Light Immunity: Up to 100,000 Lux maximum (functional in direct indoor artificial lighting and intense outdoor sunlight
