Description

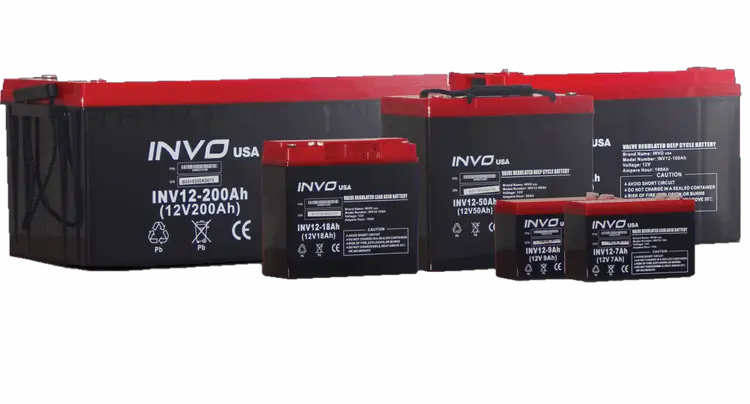

Battery INVO 12V 7 AMP Rechargeable Battery Voltage class: 12v Capacity range: 1.2-28 (25°C)
Valve Regulated Acid Battery – Voltage: 12V – Ampere Hour 7AH
- Nominal Voltage: 12V (6 cells in series)
- Nominal Capacity: 7.0 Ah at 20-hour discharge rate (0.35A to 10.5V at 25°C)
- Technology: VRLA / AGM (Maintenance-free, spill-proof, leak-resistant)
- Internal Resistance: ~19mΩ – 23mΩ when fully charged at 25°C
- Self-Discharge: Less than 3% capacity loss per month at 25°C [1, 3, 4, 5, 6, 7]
🔌 Charging & Discharging Voltages (at 25°C)
- Cycle Use Charging Voltage: 14.5V – 14.9V
- Standby / Float Use Voltage: 13.6V – 13.8V
- Maximum Initial Charging Current Limit: 2.1A
- Maximum Discharge Current: 105A for 5 seconds [
📐 Physical Dimensions & Weight
- Length: 151 mm (± 2mm)
- Width: 65 mm (± 1.5mm)
- Height: 94 mm (± 1.5mm)
- Total Height (with terminals): 100 mm (± 2mm)
- Approximate Weight: 2.1 kg (4.63 lbs)
- Terminal Type: Standard Faston Tab (F1 / T1, optional F2)
🌡️ Temperature Operating Limits
- Discharge Temperature Range: -15°C to 50°C
- Charge Temperature Range: -15°C to 40°C
- Storage Temperature Range: -20°C to 50°C [
🛠️ Common Applications
- Uninterruptible Power Supplies (UPS)
- Home Security & Fire Alarm Systems
- CCTV & Video Surveillance Systems
- Emergency Lighting Units
