Description

Cudy 2 IN 1 Hardware AP Controller and VPN Router, PoE or DC Powered, Manage Up to 200 APs, Captive Portal

A WiFi 6 router with four Gigabit ports, suitable for home internet up to 1000 Mbps, connecting many devices, and reducing latency.

•  1.3 GHz Dual-Core CPU
•  4-Stream Dual-Band Wi-Fi 6
•  2402 Mbps + 574 Mbps Wi-Fi ¹
•  5× Gigabit Ethernet Ports
•  200 Connected Devices ²
•  Covers 130 m² (1,400 ft²) ³
•  Cudy Mesh, VPN Server and Client
•  Cudy App, Cloud Control

Model Version WR3000S 1.0
CPU CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 256 MB (2 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO) with an Extra Stream
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 4× Fixed
FEM or PA/LNA
5 GHz: 3× Internal
2.4 GHz: 2× Internal
Beamforming True
Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4”)
One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”)

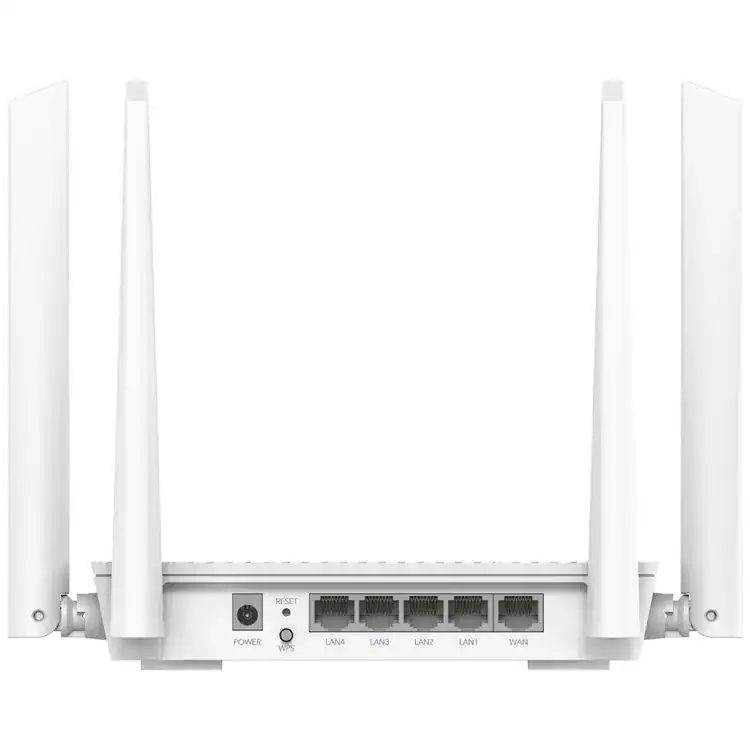

Interfaces Gigabit RJ45 Ports 5
Ethernet Notes 1× WAN port, the rest are LAN ports
LED
System
Internet
WPS
2.4 GHz Wi-Fi
5 GHz Wi-Fi
WAN
LAN
Physical Buttons
WPS Button
Reset Button
Power Input DC Jack
Power Power Methods DC
DC Input 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W) 11.5w
Idle Power Consumption (W) 4.2w
Reliability Environment
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation
Desktop
Wall-mount
Dimension 173×123.8×33 mm
6.81×4.87×1.3 inches
Product Weight 329.4 g (11.62 oz.)
Package Content
WR3000S
Power Adapter
Ethernet Cable
Installation Guide

Upgraded Processing

Powerful CPU Transmits Data in No Time

The advanced 4-nm dual-core CPU delivers an impressive efficiency bump, enabling immersive online gaming streams and multiple 4K live feeds and maintaining responsiveness. A 128 MB ROM allows more software features, and 256 MB RAM connects more clients.
