Description

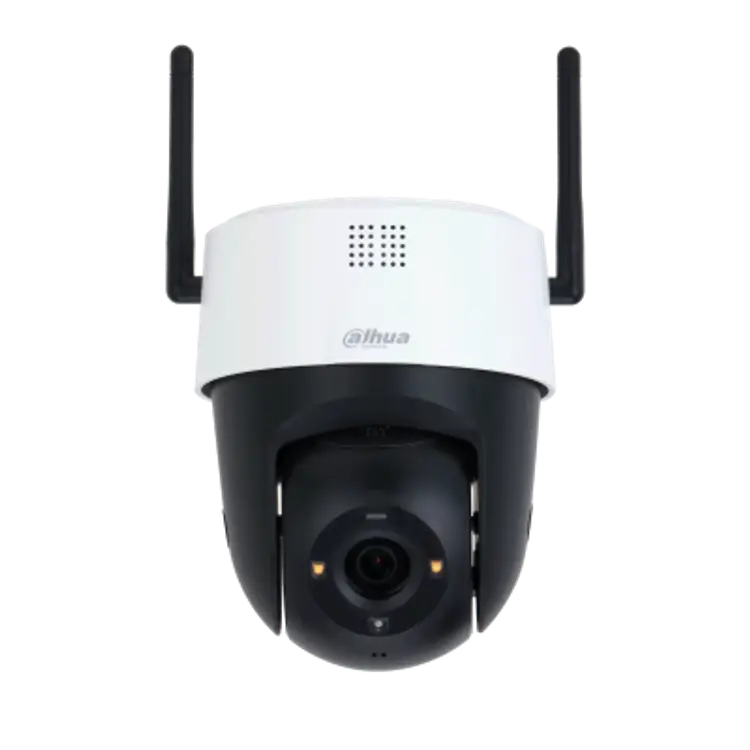

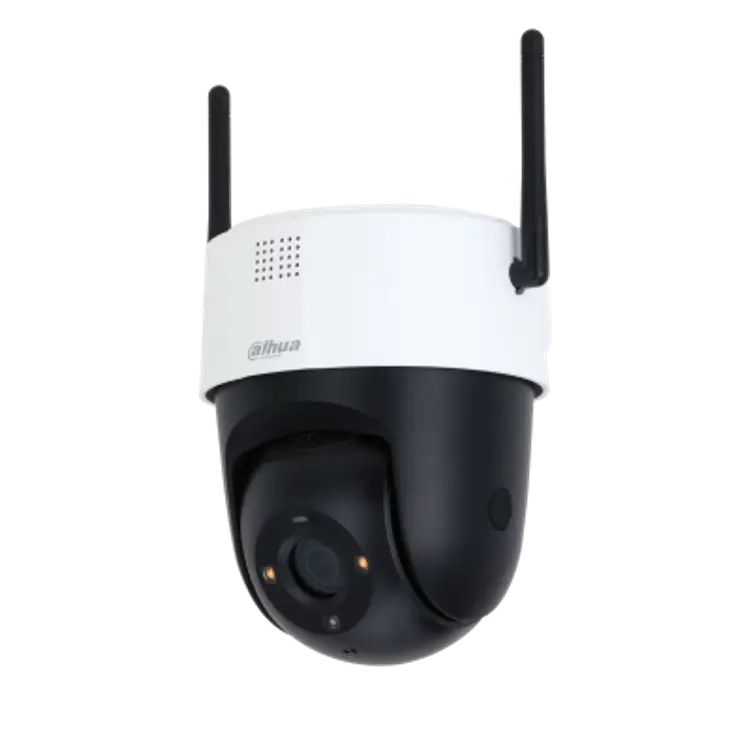

Dahua Active-Deterrence PTZ camera features smart dual illuminators and two-way talk capabilities

• Active Deterrence: Equipped with a built-in siren and warning spotlights that automatically trigger upon detecting a perimeter breach.
• Smart Dual Illuminators: Seamlessly switches between subtle Infrared (IR) night vision and full-color warm light recording when a human or vehicle target is detected.
• Two-Way Talk: Features an integrated high-sensitivity microphone and powerful speaker, enabling real-time remote communication.
• Easy App Controls: Full remote tracking, live viewing, and configuration via the official Dahua DMSS Mobile Application.
• Pan-Tilt Mobility: Offers wide horizontal and vertical rotation to drastically reduce blind spots in standard surveillance

• • Image Sensor: 1/2.8″ Progressive Scan CMOS (2MP) / 1/2.8″ STARVIS™ CMOS (5MP)
  • Max. Resolution: 1920 × 1080 (2MP) / 2560 × 1920 (5MP)
  • Frame Rate: Up to 25/30 fps (2MP) / Up to 20 fps (5MP)
  • Lens: 4.0 mm fixed lens
  • Max. Aperture: F2.0 (2MP) / F1.6 (5MP)
  • Field of View: Horizontal: ~80°–86°, Vertical: ~47°–58°

• • Pan Range: 0° to 345° horizontal rotation
  • Tilt Range: 0° to +80° vertical rotation
  • Control Speed: Manual Pan up to 74°/s; Manual Tilt up to 36.4°/s
  • Presets: Support for up to 300 preset locations
  • Position Memory: Power-off memory ensures the camera returns to its last spot after a blackout

• • Illumination Distance: Up to 30 meters (98 feet)
  • Light Elements: 2 Infrared LEDs + 2 Warm White Light LEDs
  • Lighting Modes:
    • • IR Mode: Stealth black-and-white night recording
      • Full-Color Mode: Continuous warm spotlight for color video at night
      • Smart Mode: Stays in black-and-white until a target triggers the motion sensor, immediately switching on the white spotlight for color recording

• • AI Filtering: Smart Human Detection minimizes false triggers from wind, rain, or small animals
  • Perimeter Guard: Supports customizable IVS digital boundaries (Tripwire and Intrusion)
  • Strobe Warning: Flashing white warning light with adjustable flash rates (5s to 30s durations)
  • Audio Warning: Loud onboard speaker triggers a siren or customized voice prompts (10s to 30s durations)

• • Video Formats: Smart H.265+ / H.265 / Smart H.264+ / H.264
  • Audio Intercom: Integrated microphone and high-powered speaker for clear Two-Way Talk
  • Local Storage: MicroSD slot accommodating cards up to 256 GB
  • Connectivity Options:
    • • Wi-Fi Models: Dual external high-gain antennas supporting 2.4 GHz Wi-Fi bands
      • Wired Models: One RJ-45 10/100 Mbps Ethernet port (supporting PoE on specific wired sub-models)

  • Mobile App: Accessible for full live stream tracking and remote configuration via the official Dahua DMSS platform

• Weatherproof Rating: Certified IP66-rated dust-tight and waterproof enclosure
• Temperature Thresholds: Stable operation from –30°C to +50°C (–22°F to +122°F)
• Power Supply: 12V DC, 1.5A power adapter included
• Power Draw: Base consumption of 3.5W; maximum peak load of 11W when PTZ motors, spotlights, and sirens run simultaneously
