Description

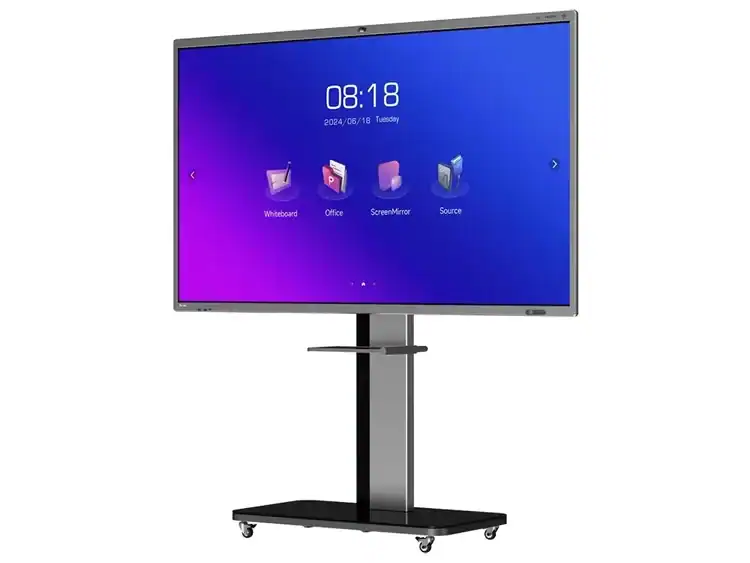

(LG PANEL) Interactive Board Ai Ultra HD UHD-4K 86″ D-LED IPS-LCD Ai Noise Reduction 8-array 12m audio pickup distance

Pro V2 interactive flat panel was developed to support advanced collaboration, digital presentations, and professional conferencing environments. A large 86 inch UHD display with 3840 x 2160 resolution was implemented to deliver sharp visuals, high brightness, and wide 178 degree viewing angles for clear visibility across meeting rooms. Consistent performance is maintained through D-LED backlighting, a long operational lifetime, and optimized power management for commercial use.

Enhanced collaboration and conferencing are supported through upgraded hardware and software architecture. Android 14.0 was installed to improve system responsiveness and application performance, while Google EDLA certification ensures seamless access to Google apps and services. A built-in 48MP AI camera system with auto framing and sound tracking was integrated alongside an 8-array microphone with 12 meter pickup distance, delivering clear audio and video for hybrid meetings. Large internal memory and comprehensive connectivity options were provided to support demanding workflows and multiple device integrations.

Key Features

86 inch UHD interactive display was designed to deliver detailed visuals with wide viewing angles for professional environments.

Android 14.0 operating system was implemented to improve overall system speed and application responsiveness.

Google EDLA certification was included to ensure native access to Google applications and services.

High-performance octa-core processor was provided to support smooth multitasking and stable operation.

Large memory and storage capacity were added to support complex applications and long-term usage.

Infrared touch technology was integrated to support up to 50 touch points for collaborative interaction.

AI-powered camera system was included to enable auto framing and voice tracking during video conferences.

8-array microphone system was designed to capture clear audio up to 12 meters with advanced noise handling.

Extensive interface and connectivity options were supported to allow flexible integration with external devices.

Specifications

Certified Model: M6AProV2

Size: 86″

Resolution: 3840*2160 (UHD)

Brightness: 470cd/m2

Refreshing Frequency: 60Hz

RAM: 8GB LPDDR4X

ROM: 128GB

CPU: Octa Core (4A73+4A53)

OS: Android 14.0

Viewing Angle: 178 degree(H) 178 degree(V)

Lifetime: 50,000 Hrs

GPU: Mali G52-MP8

Power requirements: AC 100V~240V 50/60 Hz

Power Consumption: 300W

Speaker: 60W

Sensor: Infrared,NFC, and Light Sensor

Mainboard Interface: HDMI in2, DP in 1, Type-C1, VGA in1, Audio in1, LAN2, USB2.01, USB3.02, Touch Port3, MIC in1,SPDIF1, RS232 in1, Audio Out1, SD CARD1, HDMI Out*1

Front Interface: Type-C1 (Poweroutput 60W,Support DRP mode, Public USB 3.02

Wi-Fi: Wi-Fi 6(802.11a/b/g/n/ac/ax)

Bluetooth: BT 5.3

Touch: Infrared touch frame supports up to 50 Points

Accessories: Normal Magnetic writing Pen2, Remote Controller1, Wall Mount bracket1, HDMI Cable1, Touch Cable1, Expansion Screw8, Power cord5( different standard), Instruction mannual1, Warranty card*1

Camera: 48MP+3*8MP (Auto Voice Track AI Camera)

Microphone: Array 8-mic with 12m Pickup distance
