Description

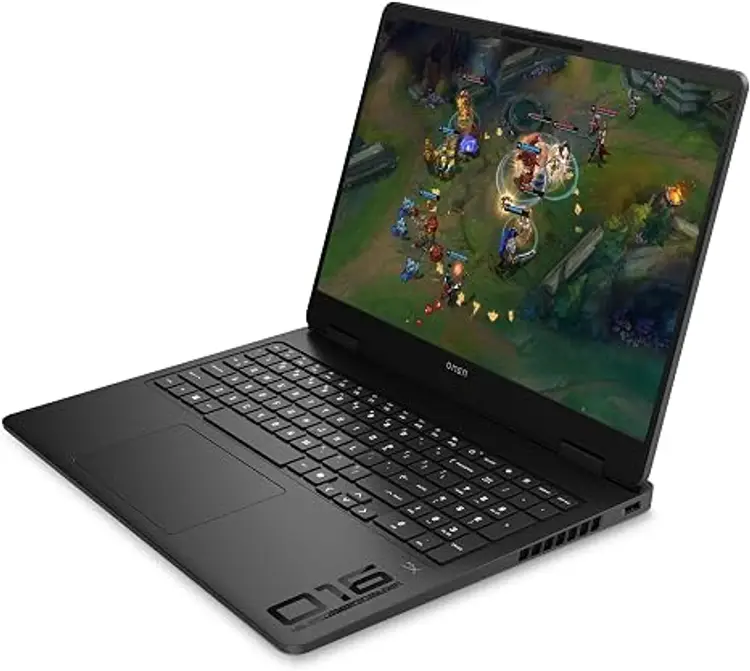

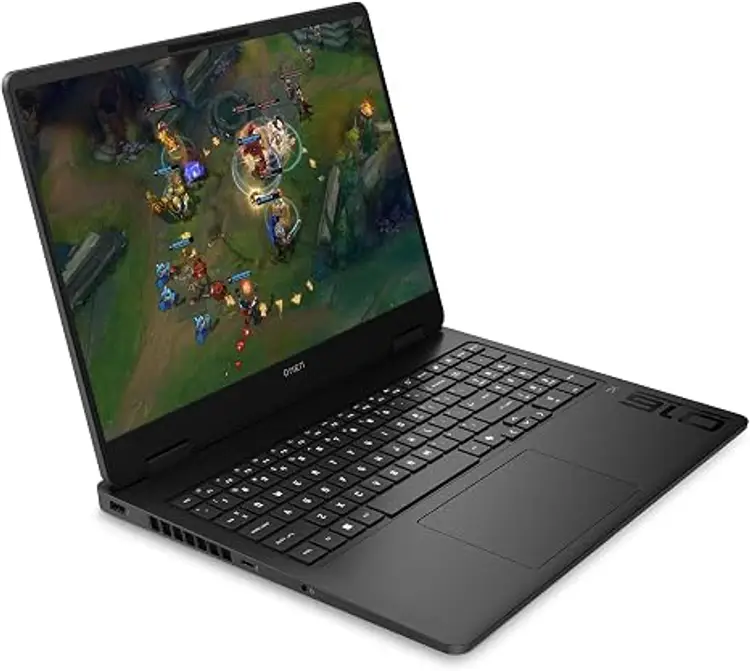

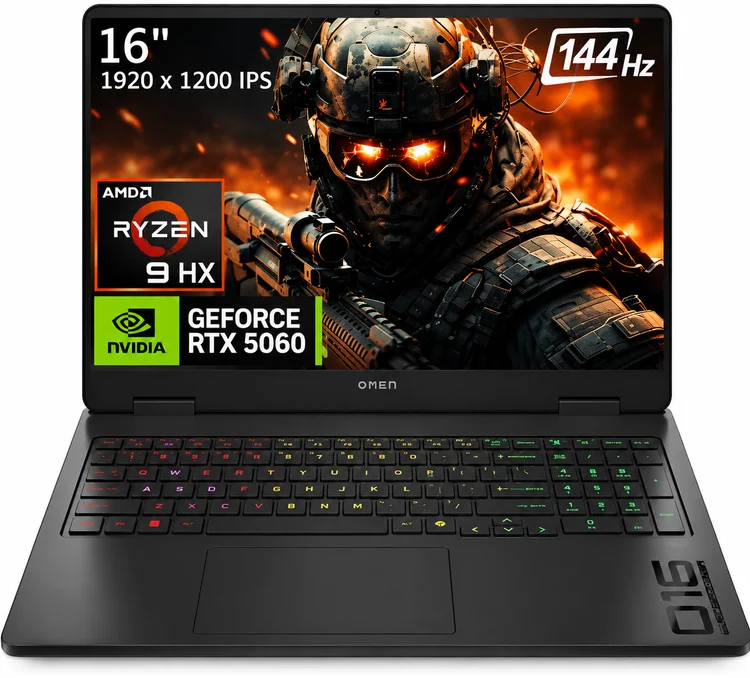

HP OMEN 16Z-AP000 RYZEN 9 8940HX 16GB 512GB NVME 16 WUXGA 144HZ RTX 5060 8GB WIN 11 BLACK

• • Processor (CPU): AMD Ryzen™ 9 8940HX
    • • Cores / Threads: 16 Cores / 32 Threads
      • Clock Speed: Base frequency varies, up to 5.3 GHz Max Boost clock
      • Cache: 64 MB L3 Cache, 16 MB L2 Cache
      • AI Processing: Integrated AMD Ryzen™ AI NPU (delivering up to 50 NPU TOPS)

  • Graphics (GPU): NVIDIA® GeForce RTX™ 5060 Laptop GPU
    • • Video Memory: 8 GB GDDR7 VRAM
      • Architecture: Blackwell architecture featuring AI-enhanced DLSS 4 frame generation
      • Total Graphics Power (TGP): Up to 115W TGP with Dynamic Boost

  • Memory (RAM): 16 GB DDR5 high-speed dual-channel memory (Upgradeable via 2x SO-DIMM slots)
  • Storage (SSD): 512 GB PCIe Gen4 NVMe M.2 Solid State Drive (Features an extra M.2 slot for storage expansio

• • Screen Size: 16.0 inches (16:10 Aspect Ratio)
  • Resolution: WUXGA / FHD+ (1920 x 1200 pixels)
  • Refresh Rate: 144 Hz with Variable Refresh Rate (VRR) and AMD FreeSync support
  • Panel Type: IPS Anti-glare micro-edge display
  • Brightness & Color: Up to 500 nits, 100% sRGB color gamut (Some regional configurations list 300 nits, 62.5% sRGB)
  • Response Time: 3 ms

• • Wireless: Wi-Fi 6E (2×2) and Bluetooth 5.3 comb
  • Left Side I/O:
    • • 1 x USB Type-C® (10Gbps signaling rate, USB Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge)
      • 1 x Headphone/microphone combo jack

  • Right Side I/O:
    • • 1 x USB Type-A (10Gbps signaling rate)

  • Rear I/O:
    • • 2 x USB Type-A (5Gbps signaling rate)
      • 1 x HDMI 2.1 (Up to 48Gbps)
      • 1 x RJ-45 (Gigabit Ethernet)
      • 1 x Smart AC pin power connecto

• Cooling System: OMEN Tempest Cooling architecture with dual high-efficiency fans and wide heat pipes
• Keyboard: Full-size island-style shadow black keyboard with 4-Zone RGB backlighting
• Audio: Dual speakers tuned by HyperX with DTS:X® Ultra support
• Webcam: Integrated IR HD Webcam with a privacy shutter
• Battery: 6-cell, 83 Whr High-Capacity Lithium-ion polymer battery
• Dimensions: 14.07 x 10.59 x 0.94 inches (front) / 1.12 inches (rear)
• Weight: ~5.4 lbs (2.44 kg)
• Operating System: Windows 11

The HP OMEN 16Z features an upgraded iteration of HP’s proprietary OMEN Tempest Cooling architecture. Designed to regulate the high thermal output of the 16-core AMD Ryzen 9 8940HX processor and the NVIDIA GeForce RTX 5060 Laptop GPU, the cooling configuration utilizes several distinct design choices

• Evolved Airflow Design: This specific generation incorporates a 30% larger fan gap compared to previous designs, generating up to 1.5x more airflow through the internal chassis.
• Fan and Blade Innovation: It uses high-efficiency dual fans with ultra-thin blades (up to 2.5x slimmer than traditional laptop fans) to significantly increase the overall blade count and accelerate air movement without proportionately increasing acoustics. [1, 2]
• Thermal Interface & Heat Dissipation: The architecture relies on an advanced copper heat pipe technology array combined with OMEN Cryo Compound (a high-performance thermal interface material) to quickly channel heat away from the silicon into wide-set fin arrays. [
• Ventilation Grid: The bottom chassis features an extensive ventilation area covering roughly half of the lower cover. It utilizes a multi-outlet layout, pulling cold air through the base and exhausting hot air out the sides and rear
