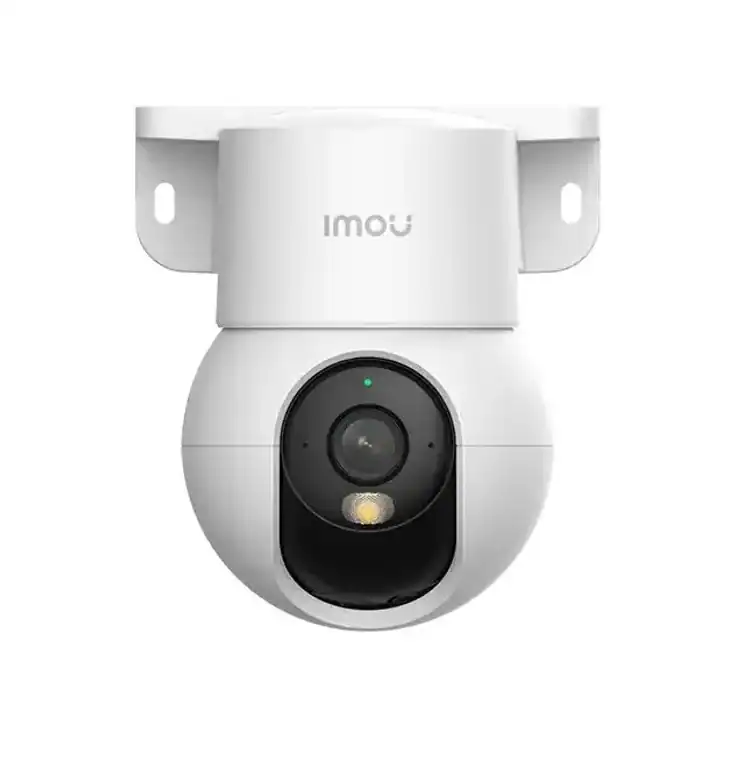

imou integrated-bracket indoor 3K 5MP smart security camera ranger mini pan&tilt smart tracking smart full-color night vision
Camera
1/3” Progressive CMOS
5MP (2688 x 1664)
Night Vision: 10m(33ft) Distance
3.6mm Fixed Lens
Field of View : 87°(H), 48°(V), 108°(D)
355°Pan & -5~50°Tilt
Network
1 x 100Mbps Ethernet Port
Wi-Fi: IEEE802.11b/g/n/ax, 50m Open Field
Imou App: iOS, Android
Onvif
Video & Audio
Video Compression : H.265/H.264
Up to 20fps Frame Rate
8 x Digital Zoom
Two-way Audio
Auxiliary Interface
Micro SD Card Slot (up to 512GB)
Built-in Mic & Speaker
Reset Button
Notice Management
Motion Detection
Human Detection
Configurable Region
Abnormal Sound Alarm
General
DC 5V1A Power Supply
Power Consumption:< 4.2W
Working Environment: -10°C~+45°C, Less Than 95%RH
Dimensions (L × W × H):
95.0 mm × 96.0 mm × 109.2mm (3.74 × 3.78 × 4.30 inch)
Weight: 200g (0.44lb)
CE
Integrated-Bracket | Selectable 2K/3K Image
Smart Full-color Night Vision | Human Detection
Supports Wi-Fi 6 & USB-C Connection
Choose the resolution that best suits your needs
The 5megapixels providing you with clear 3K images. IMOU Ranger offers 2 different camera pixel options, so you can choose the one that suits you best.
Choose the resolution that best suits your needs
The 5 megapixels providing you with clear 3K images. IMOU Ranger Mini offers 2 different camera pixel options, so you can choose the one that suits you best.

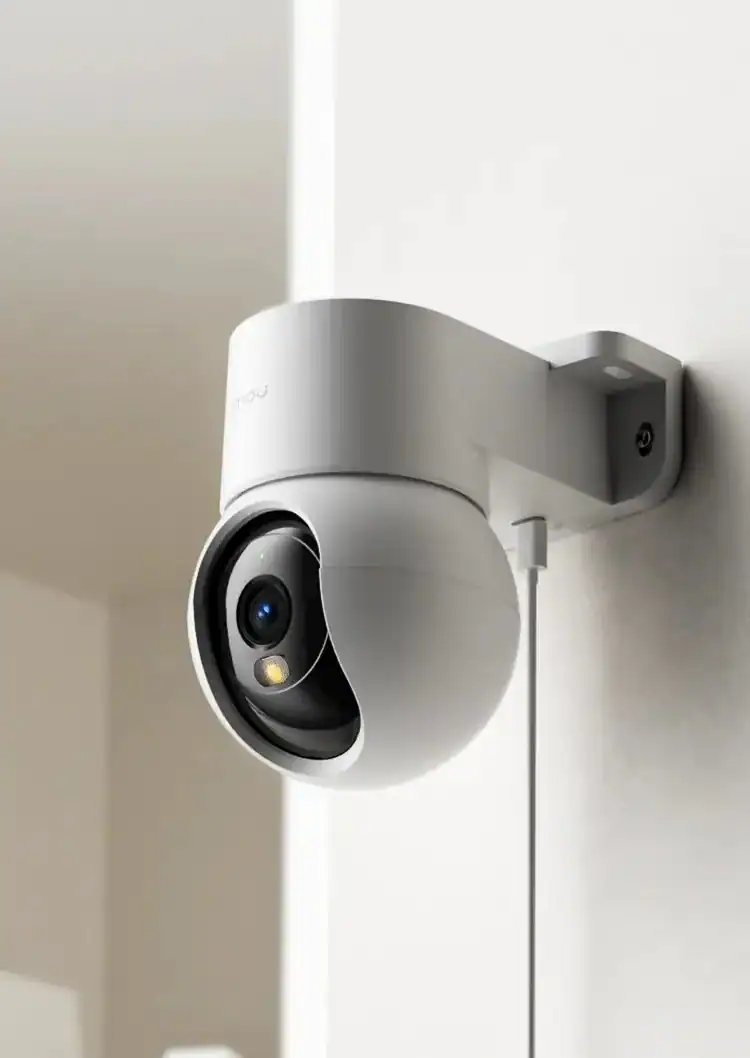

Thanks to the integrated-bracket, Ranger Mini supports Wall Mounting, Ceiling Mounting or even able to place it on the table if you like. No more additional accessories needed.
Ranger Mini supports 0°-355° pan and -5°-50° tilt to fully protect your home with a 360-degree view.
Light the night up with smartness
Ranger Mini can adjust different night vision modes according to your needs, whether you want the night vision to remain in full color all the time or want to turn on full color only when there is an event to save energy, it can always satisfy you.
Smart mode
The camera will automatically turn into color mode from infrared mode when suspicious motion is detected.
Full-color mode
Thanks to the built-in spotlights, your night vision is now turned up and in full color.
Infrared mode
Advanced IR algorithm provide clear black-and-white pictures even in darkness.
Off mode
Turn off all night vision modes Infrared and spotlights are all turned off.
Ranger Mini can tell if the target is human by the powerful image processing technology.
You can customize the patrol plan flexibly to have a 360° panoramic tour, or select the key areas to have a favorites tour makes sure everything is safe and accident-free.
Ranger Mini can detect movement in the image and allows the camera to follow automatically, keeping the target consistently within the monitoring range.
With just a click in the app, Ranger Mini will automatically flip down the camera and activates the physical privacy shield to protect your privacy in your home.
It supports full duplex two-way talk with built-in echo cancellation, allowing you to have real-time smooth communication with the person in front of the camera.
You can set the Ranger Mini to detect high-decibel abnormal sounds in the App, whether it’s a fall or a broken cup, it can quickly push the information to your phone, and protect your family away from emergencies.
