Description

Processor: Intel® Core™ i7-14700HX Processor 20 Cores (8 P-core + 12 E-core), 28 Threads Max Turbo Frequency: Up to 5.5 GHz
Graphics: NVIDIA® GeForce RTX™ 5060 Laptop GPU 8GB GDDR7 VRAM
TGP: 115W (with Dynamic Boost)
Blackwell Architecture, DLSS 4, Ray Tracing, Reflex 2
Display: 15.1-inch WQXGA (2560 x 1600) OLED Multi-touch Display
Aspect Ratio: 16:10
Brightness: 500 nits
Refresh Rate: 165Hz
Color Gamut: 100% DCI-P3
Response Time: Sub-1ms
Features: DisplayHDR™ True Black 600, Dolby Vision®
Memory (RAM): 16GB DDR5-5600MHz (2x 8GB SO-DIMM), Upgradable to 32GB/64GB
Storage: 1TB M.2 2242 PCIe Gen4 NVMe SSD
Operating System: Windows 11 Home
Keyboard: Backlit Keyboard (e.g., 4-zone RGB or Blue), Numeric Keypad, Copilot Key
Touchpad: Buttonless Mylar surface multi-touch touchpad
Webcam: FHD 1080p + IR Camera with Privacy Shutter, Windows Hello support
Audio: 2x 2W Stereo Speakers with Nahimic Audio, Harman Kardon tuning
Ports:
2x USB-C® (USB 10Gbps / USB 3.2 Gen 2, with PD & DP)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1, 1x Always On)
1x HDMI® 2.1
1x RJ45 Ethernet
1x Headphone/microphone combo jack (3.5mm)
Wireless: Wi-Fi® 6E (802.11ax 2×2), Bluetooth® 5.2 (or newer)
Battery: 60Wh or 80Wh Li-ion (specific to configuration), supports Super Rapid Charge
Power Adapter: 245W Slim AC Adapter
Dimensions (WxDxH): Approx. 344.9 x 255.35 x 19.95-21.54 mm (OLED models)
Weight: Starting at approx. 1.9 kg (4.19 lbs) for OLED models
Color: Eclipse Black
Security: Firmware TPM 2.0, E-shutter

Cores/Threads: Features 20 Cores (8 Performance-cores + 12 Efficient-cores) and 28 Threads.
Max Boost Frequency: Capable of reaching up to 5.5 GHz on Performance-cores and 3.9 GHz on Efficient-cores.
Cache: Equipped with a substantial 33MB Intel Smart Cache, enabling rapid data access for complex computations.
The HX designation signifies a higher Thermal Design Power (TDP) and more desktop-class performance, ideal for gaming and professional applications requiring significant processing power.

Graphics:

The laptop features the NVIDIA® GeForce RTX™ 5060 Laptop GPU with 8GB of GDDR7 VRAM. This is a key component from NVIDIA’s newly launched Blackwell architecture, bringing significant advancements over previous generations.

Architecture: Based on the new Blackwell architecture, offering improved efficiency and performance.
TGP (Total Graphics Power): Typically configured with a TGP of 115W, including Dynamic Boost, ensuring a strong performance envelope for this GPU tier.
AI Capabilities: Integrated 5th Gen Tensor Cores enable advanced AI features like NVIDIA DLSS 4 (Deep Learning Super Sampling 4) with Frame Generation and Multi Frame Generation, significantly boosting frame rates in supported games.
Ray Tracing: Utilizes 4th Gen Ray Tracing Cores for highly realistic lighting, reflections, and shadows, enhancing visual fidelity in games.
Supports NVIDIA Reflex 2 for reduced system latency, NVIDIA Broadcast for AI-enhanced audio/video, and the full suite of NVIDIA Studio drivers for creative applications.

Display:

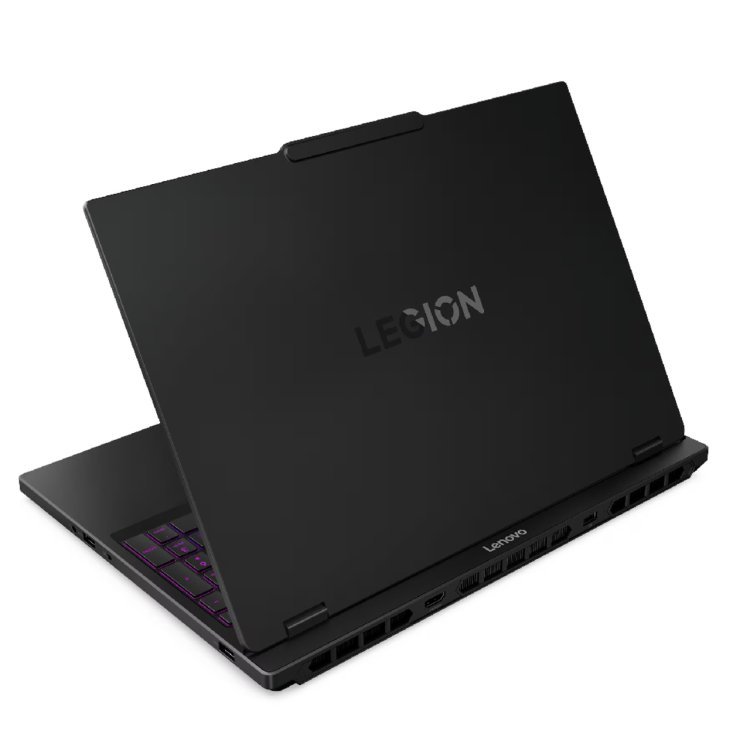

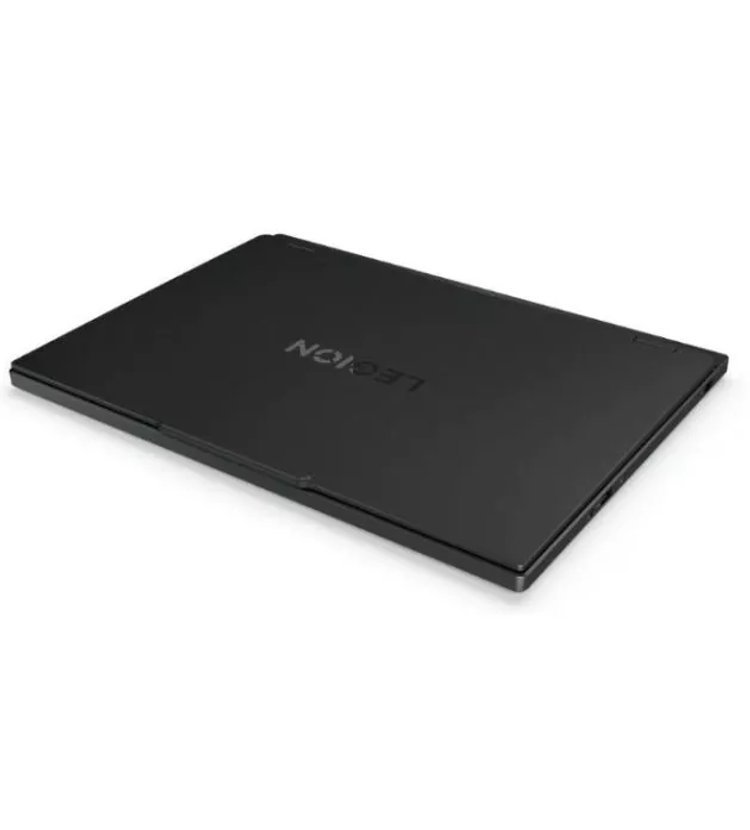

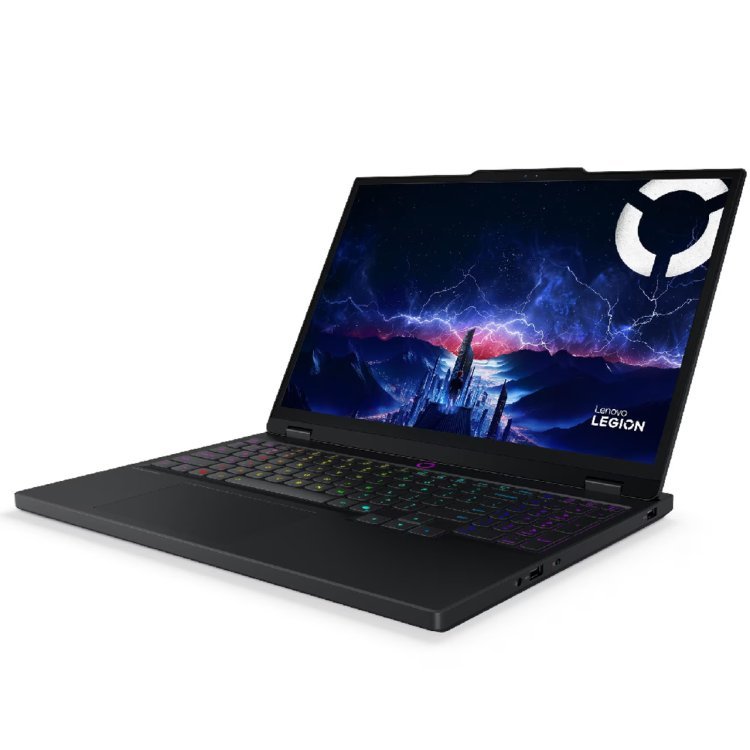

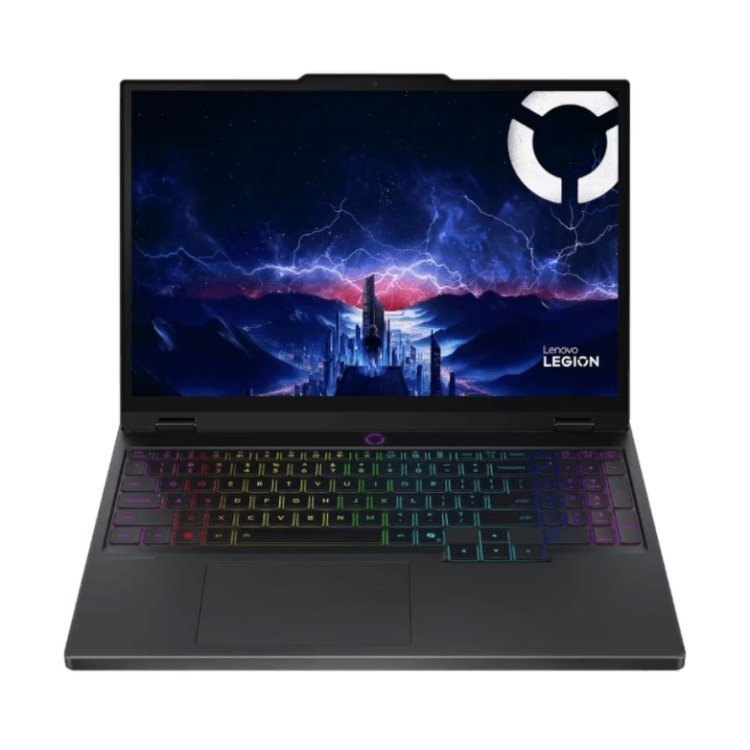

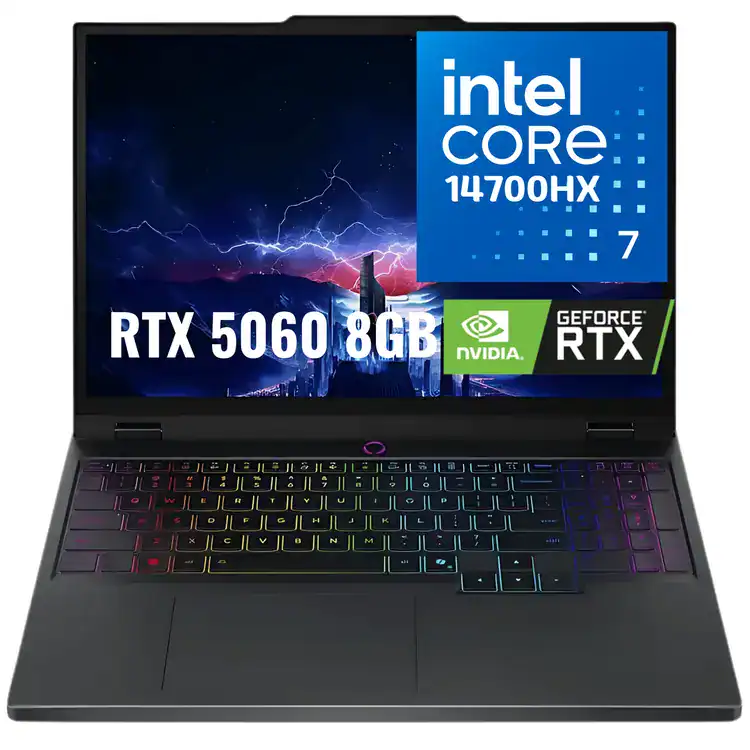

The Legion 5i 15IRX10 (83LY0000US) boasts a high-quality display, offering an immersive visual experience for gaming and multimedia.

Size & Resolution: 15.1-inch WQXGA (2560 x 1600) display. The 16:10 aspect ratio provides more vertical screen space, beneficial for productivity and content viewing.
Panel Type: OLED panel, known for its deep blacks, vibrant colors, and excellent contrast (1,000,000:1 contrast ratio).
Brightness: 500 nits peak brightness, ensuring clear visibility even in well-lit environments.
Refresh Rate: 165Hz refresh rate for smooth motion and fluid gameplay.
Color Gamut: 100% DCI-P3 color accuracy, making it excellent for content creation tasks that demand precise color representation.
HDR: Supports DisplayHDR™ True Black 600 and Dolby Vision®.
Response Time: Sub-1ms response time, crucial for competitive gaming.

Memory and Storage:

The laptop is equipped with modern, high-speed memory and ample storage.

Memory (RAM): 16GB DDR5-5600MHz RAM (configured as 2x 8GB SO-DIMM).
Upgradeability: Features two DDR5 SO-DIMM slots, supporting up to 32GB or potentially 64GB (check specific regional configurations for max supported RAM), allowing for future upgrades.
Storage: 1TB M.2 2242 PCIe Gen4 NVMe SSD, providing fast boot times and rapid application loading.
Storage Slots: Typically includes two M.2 2280 PCIe 4.0 x4 slots for expansion or additional storage.

Design and Portability:

The Legion 5i maintains a balanced approach to design, focusing on functionality and a sleek aesthetic.

Build Quality: Eclipse Black color, often featuring a blend of PC-ABS + 15% Talc for durability.
Dimensions: Approximately 344.9 x 255.35 x 19.95-21.54 mm (for OLED models) or 22.50-23.99 mm (for IPS models).
Weight: Starting at approximately 1.9 kg (4.19 lbs) for OLED models, making it relatively portable for a gaming laptop of this caliber.

Keyboard and Audio:

Designed for an optimal gaming and user experience.

Keyboard: Backlit keyboard (often 4-zone RGB or white backlight option) with 1.6mm key travel, 100% Anti-Ghosting, and a numeric keypad. Includes a dedicated Copilot key for AI features.
Audio: Stereo speakers (2x 2W) optimized with Nahimic Audio and Harman Kardon tuning, providing immersive sound. Dual-microphone array for clear voice capture.

Connectivity and Other Features:

A comprehensive set of ports and modern wireless capabilities.

Ports:
2x USB-C® (USB 10Gbps / USB 3.2 Gen 2) with Power Delivery 3.0 and DisplayPort™ 1.4/2.1 support (depending on the specific USB-C port).
2x USB-A (USB 5Gbps / USB 3.2 Gen 1, one Always On).
1x HDMI® 2.1 (supports up to 8K@60Hz).
1x RJ45 Ethernet.
1x Headphone/microphone combo jack (3.5mm).
Power connector.
Wireless: Wi-Fi® 6E (802.11ax 2×2) and Bluetooth® 5.2 (or later, potentially Bluetooth 5.3/5.4 depending on module). Some variants may support Wi-Fi 7.
Webcam: FHD 1080p + IR camera with a physical privacy shutter, supporting Windows Hello for secure facial recognition.
Battery: Integrated Li-ion battery (often 60Wh or 80Wh options) with Super Rapid Charge support.
Operating System: Ships with Windows 11 Home, optimized for AI-accelerated experiences.
Security: Firmware TPM 2.0 integrated in chipset, E-shutter for webcam privacy.
The Lenovo Legion 5i 15IRX10 (83LY0000US) stands out as a highly capable gaming machine that embraces the latest hardware advancements. Its combination of a powerful 14th Gen Intel HX CPU, the new NVIDIA RTX 5060 GPU, a stunning OLED display, and comprehensive features makes it an excellent choice for serious gamers and creative professionals seeking top-tier performance.
