Description

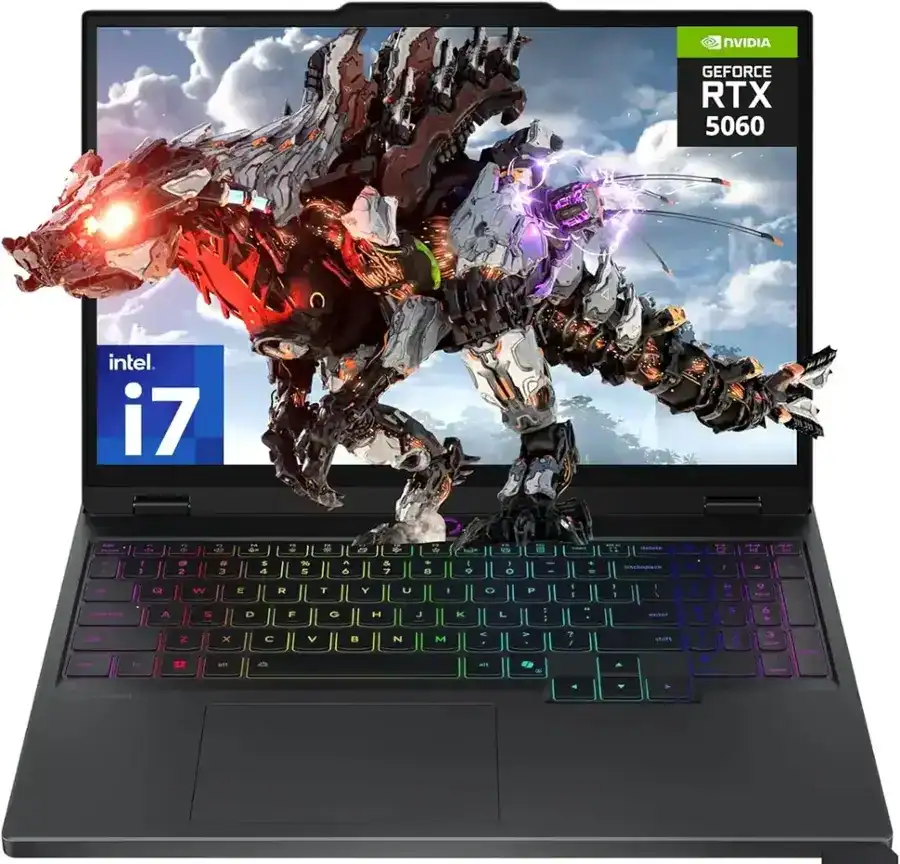

LENOVO LEGION 5 Ai Intel® Core™ i7-14700HX 20CORE 16gb 1TB SSD 15.1″ 2k(2560×1600) OLED 165Hz NVIDIA® RTX™ 5060 8GB
- Processor (CPU): Intel Core i7-14700HX (14th Gen)
- Total Cores: 20 Cores (8 Performance cores + 12 Efficient cores) / 28 Threads
- P-core Clock: 2.1 GHz Base / 5.5 GHz Turbo
- E-core Clock: 1.5 GHz Base / 3.9 GHz Turbo
- Cache: 33MB Intel Smart Cache
- Graphics (GPU): NVIDIA GeForce RTX 5060 Laptop GPU
- VRAM: 8GB GDDR7
- Boost Clock: 2497 MHz
- Total Graphics Power (TGP): 115W
- AI Computing Power: 572 AI TOPS
- System Memory (RAM): 16GB DDR5-5600
- Configuration: 1x 16GB SO-DIMM (Single-channel out of the box)
- Slots: Two DDR5 SO-DIMM slots (Dual-channel capable)
- Maximum Capacity: Upgradeable up to 32GB DDR5-5600
- Storage (SSD): 1TB M.2 2242 PCIe 4.0×4 NVMe SSD
- Slots Available: Two physical slots (Supports M.2 2280 PCIe 4.0 x4)
- Expansion Support: Up to two drives (M.2 2242 SSD up to 1TB each)
- Motherboard Chipset: Intel HM770
- Special Enhancement: Coprocessor LA1 AI Chip for optimized thermal and gaming adjustments.
📺 Display & Design
- Screen Panel: 15.1″ WQXGA (2560×1600) OLED display featuring 165Hz refresh rate, up to 1000 nits peak brightness, 100% DCI-P3 color gamut, Dolby Vision, and DisplayHDR True Black 600.
- Chassis Build: Eclipse Black aluminum and PC-ABS construction, 24-Zone RGB backlit keyboard, weighing approximately 1.9 kg.
🔌 Connectivity, Audio & Security
- Wireless & Wired: Wi-Fi 7, Bluetooth 5.4, and Gigabit Ethernet.
- Ports: Includes multiple USB-A and USB-C ports (with Power Delivery and DisplayPort support), HDMI 2.1, and a 3.5mm combo jack.
- Multimedia & Security: HARMAN stereo speakers with Nahimic Audio, 5.0MP webcam with an E-shutter, and firmware TPM 2.0.
🔋 Power & Operating System
- Power: 80Wh internal battery paired with a 245W Slim Tip AC adapter.
- OS: Windows 11
- 1 year warranty
