Description

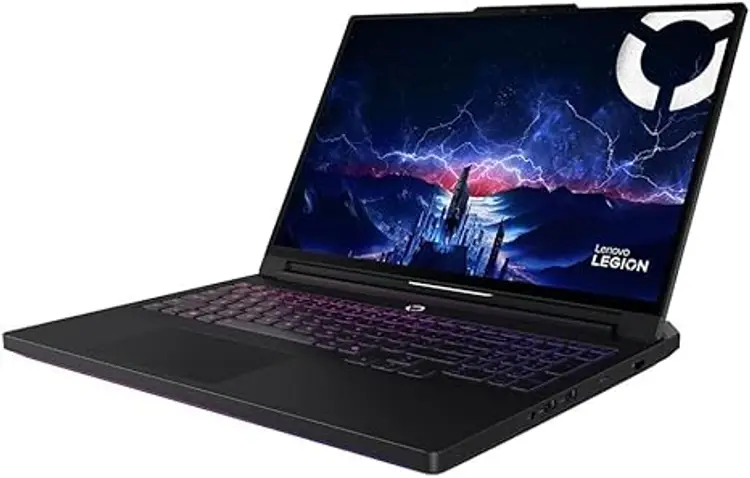

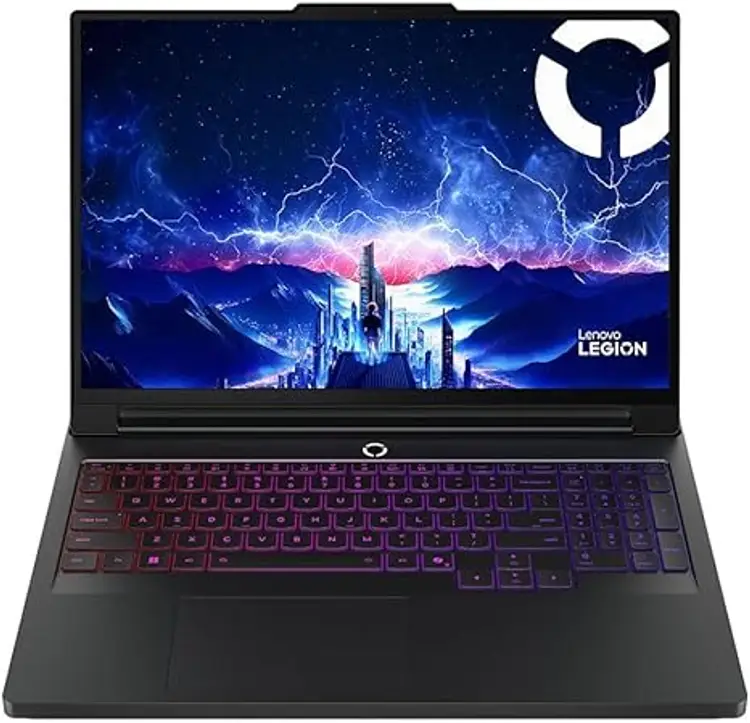

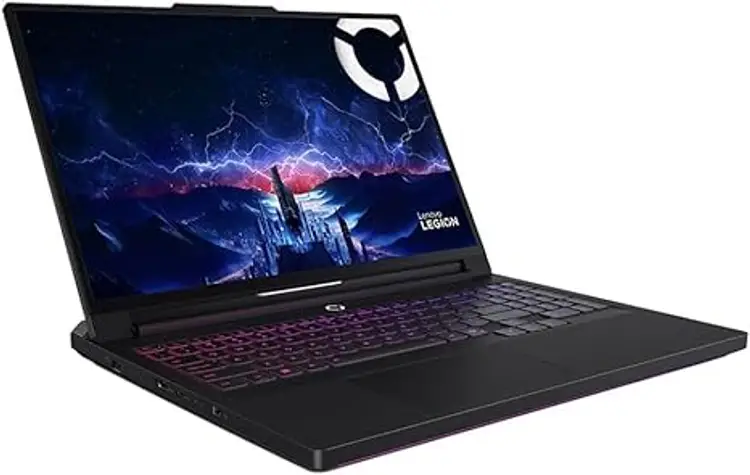

Lenovo Legion 7 16IAX10H  Ultra 9 275HX 64GB 1TB NVMe 16″ OLED 240Hz NVIDIA RTX 5080 16384MB ECLIPSE BLACK WIN 11

• • Processor (CPU): Intel Core Ultra 9 275HX
    • • Cores / Threads: 24 Cores (8 Performance-cores / 16 Efficient-cores) | 24 Threads
      • Clock Speed: 2.7 GHz Base / Up to 5.4 GHz Max Turbo Frequency
      • Cache: 36MB Intel Smart Cache
      • Neural Processing Unit (NPU): Dedicated Intel AI Boost engine (up to 36 total platform TOPS)

  • Graphics (GPU): NVIDIA GeForce RTX 5080 Laptop GPU
    • • Video Memory: 16GB GDDR7
      • Power limits: Up to 175W Total Graphics Power (TGP) including 25W Dynamic Boost
      • AI Processing: Up to 1334 AI TOPS for advanced ray-tracing and DLSS frame generation

  • Memory (RAM): 64GB DDR5
    • • Speed & Layout: 6400 MT/s in a dual-channel configuration (2 x 32GB SO-DIMMs)

  • Storage: 1TB NVMe M.2 SSD
    • • Bus Interface: PCIe Gen 5 x4 ultra-performance interface
      • Expansion: Two M.2 slots available for total internal expansion

• • Display Screen: 16.0-inch WQXGA Panel
    • • Resolution & Aspect Ratio: 2560 x 1600 pixels (16:10 aspect ratio)
      • Panel Technology: OLED with glossy finish
      • Refresh Rate / Response: 240Hz refresh rate with sub-0.5ms response time
      • Brightness & Color: 500 nits typical (up to 1000 nits peak HDR) | 100% DCI-P3 color gamut
      • Certifications: VESA DisplayHDR True Black 1000, Dolby Vision, NVIDIA G-SYNC, TÜV Rheinland Low Blue Light

  • Audio System: Stereo speaker layout with integrated Smart Amp
    • • Enhancements: Sound tuned by Harman with Nahimic Audio 3D gaming profiles

• • Wireless Networking: Wi-Fi 7 (802.11be, 2×2 multi-link operation)
  • Bluetooth: Version 5.4
  • Wired LAN: 2.5 Gigabit Ethernet RJ-45 killer jack
  • Input/Output Ports:
    • • 1 x Thunderbolt 4 / USB4 40Gbps (supports DisplayPort 2.1 data)
      • 1 x USB-C 3.2 Gen 2 (supports 100W Power Delivery and DisplayPort 2.1)
      • 1 x USB-A 3.2 Gen 2 (Always-On 10Gbps signaling)
      • 2 x USB-A 3.2 Gen 1 (5Gbps signaling)
      • 1 x HDMI 2.1 (supports external outputs up to 8K at 60Hz)
      • 1 x 3.5mm Headphone/Microphone combo jack

• • Keyboard: Legion TrueStrike per-key RGB backlit chiclet keyboard
  • Touchpad: Buttonless Mylar surface multi-touch pad (75 mm x 120 mm)
  • Webcam: 5.0 Megapixel high-definition camera with integrated electronic E-Shutter privacy switch
  • Chassis Color: Eclipse Black
  • Thermal System: Legion Coldfront cooling engine utilizing dual-fan hardware vapor chambers and liquid metal paste
  • Dimensions (W x D x H): 364.38 mm x 275.94 mm x 21.9–26.65 mm
  • Weight: Starts at approximately 2.57 kg (5.67 lbs)

• Battery Type: 4-cell, 99 Watt-hour (Whr) Lithium-Polymer battery
  • • Charging: Super Rapid Charge technology (0% to 70% in roughly 30 minutes)

• Power Supply: 300W AC Adapter brick
• Operating System: Windows 11 Home (64-bit edition)
• AI Engine: Features Lenovo LA1 and LA3 hardware AI co-processors to dynamically shift power allocations between CPU and GPU
