Description

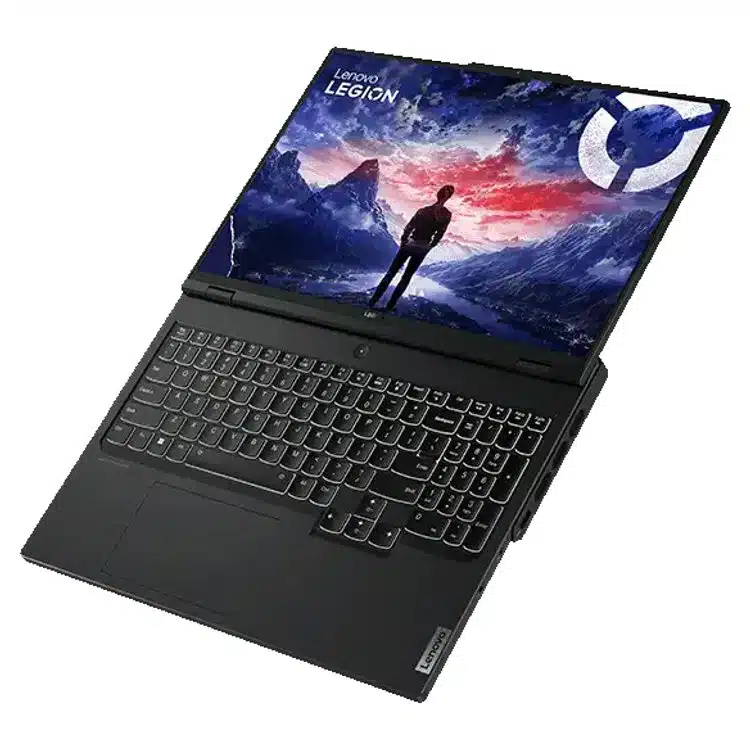

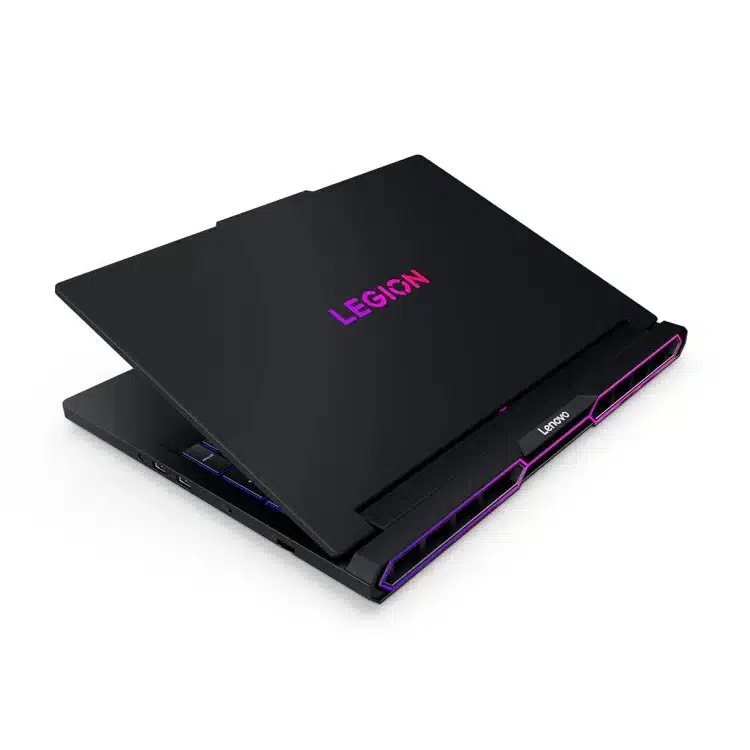

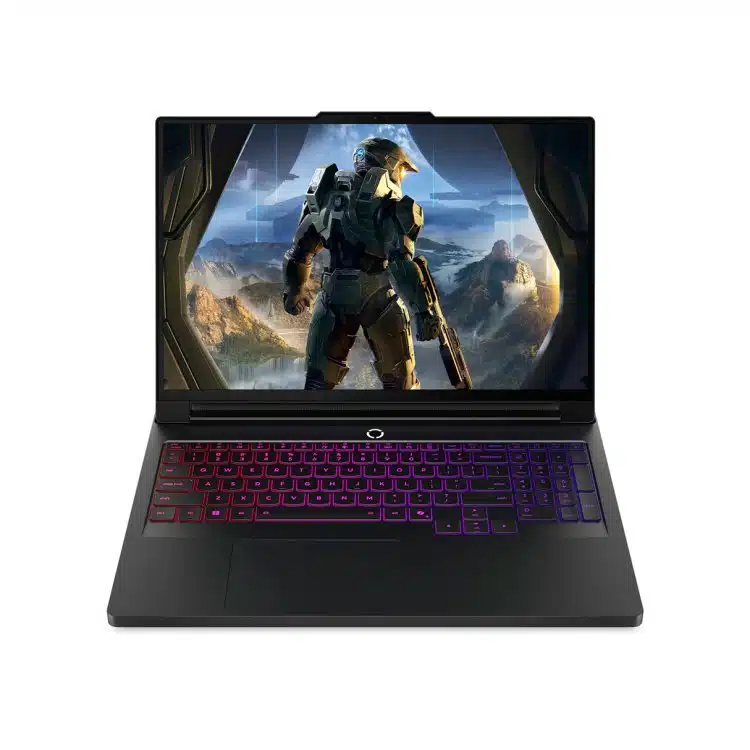

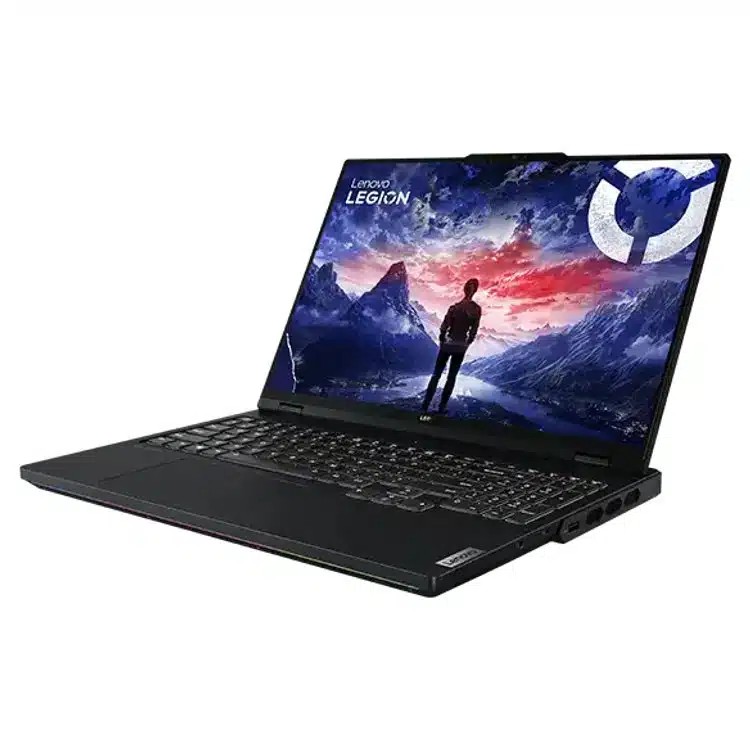

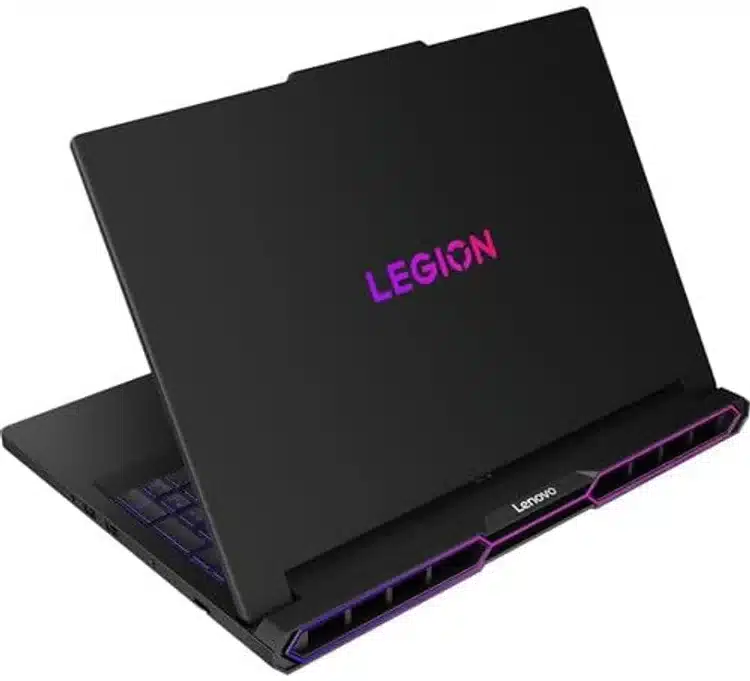

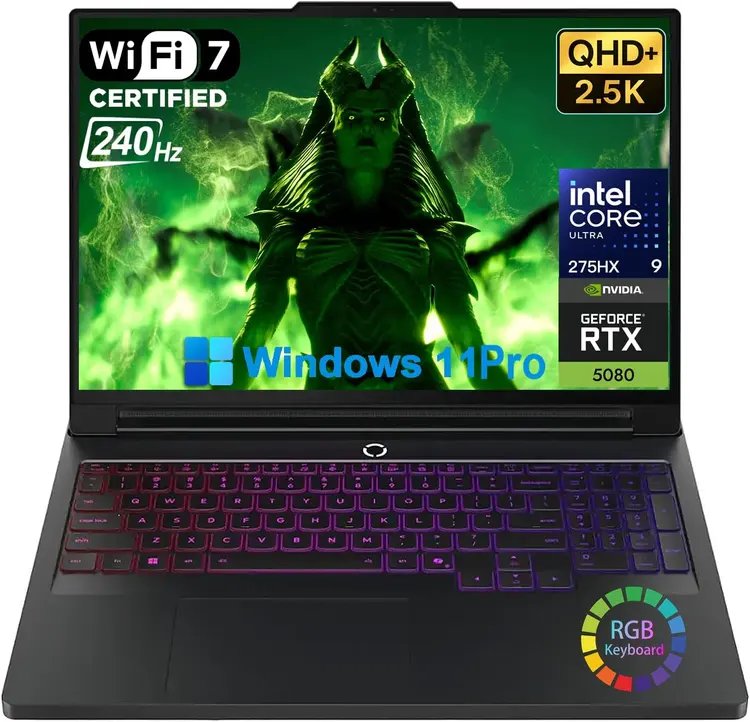

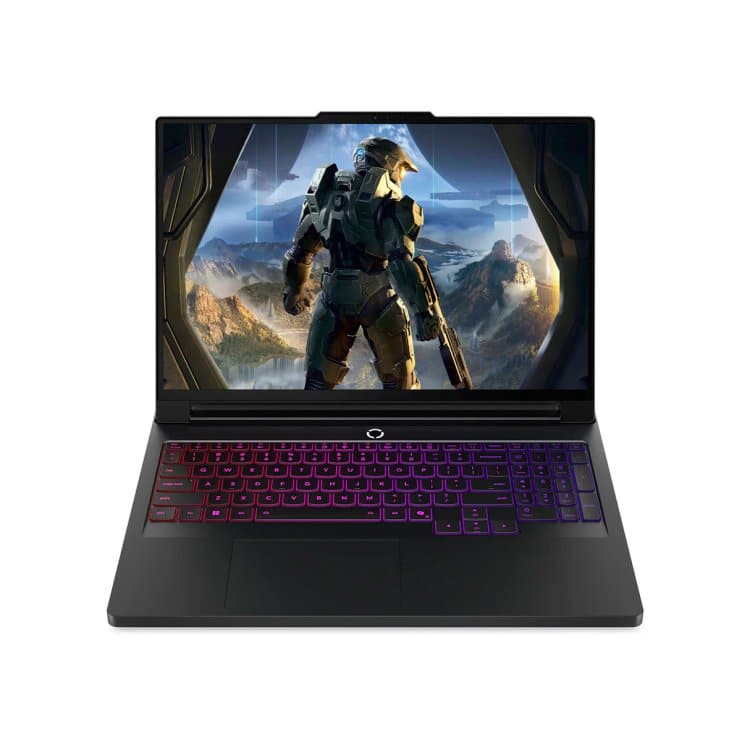

Lenovo Legion Pro 7 Intel® Core Ultra 9 275HX 2.1GHz 64GB DDR5-6400 2x 1TB SSD 16″ WQXGA (2560×1600) OLED 240Hz NVIDIA® GeForce RTX™ 5080 16GB Eclipse Black WIN 11 PRO Per-key RGB Backlit Keyboard

Processor
Intel® Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB
AI PC Category
AI-Powered Gaming PC
NPU
Integrated Intel® AI Boost, up to 13 TOPS
Graphics
NVIDIA® GeForce RTX™ 5080 16GB GDDR7, Boost Clock 2287MHz, TGP 175W, 1334 AI TOPS
Chipset
Intel® HM870 Chipset
Memory
2x 32GB CSODIMM DDR5-6400
Memory Slots
Two DDR5 CSODIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR5-6400 offering
Storage
1TB SSD M.2 2280 PCIe® 5.0×4 Performance NVMe®
Storage Slot
Two M.2 slots
• One M.2 2280 PCIe® 5.0 x4 slot
• One M.2 2280 PCIe 4.0 x4 slot
Max Storage Support
Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB
• M.2 2280 SSD up to 2TB
Optical
None
Card Reader
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers
4 stereo speakers, 2W x2 (woofers), 2W x2 (tweeters), optimized with Nahimic Audio, Smart Amplifier (AMP)
Microphone
2x, Array
Camera
5.0MP with E-shutter
Battery
99.9Wh
Power Adapter
400W Slim Tip (3-pin)
Special Features
AI Chip: LA3
DESIGN
Display
16″ WQXGA (2560×1600) OLED 500nits (Typical) / 1100nits (Peak) Glossy, 100% DCI-P3, 240Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance, Flicker Free
Touchscreen
None
Screen-to-Body Ratio
92% AAR (active area ratio)
Color Calibration
Factory Color Calibration
Pen
Pen Not Supported
Keyboard
Per-key RGB Backlit, English
Touchpad
Buttonless Mylar® surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH)
364.38 x 275.94 x 21.9-26.65 mm (14.35 x 10.86 x 0.86-1.05 inches)
Weight
Starting at 2.57 kg (5.67 lbs)
Case Color
Eclipse Black
Case Material
Aluminium (Top), Aluminium (Bottom)
Surface Treatment
Anodizing Sandblasting
SOFTWARE
Operating System
Windows® 11 Home, English
Bundled Software
Office Trial + Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 7, 802.11be 2×2 + BT5.4
WWAN
Non-WWAN
Ethernet
2.5GbE (RJ-45)
Standard Ports
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1
1x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer and DisplayPort™ 2.1)
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (2.5GbE RJ-45)
1x Power connector
Docking
Various docking solutions supported via Thunderbolt™ or USB-C®.
For more compatible docking solutions, please visit
Docking for Legion Pro 7 16IAX10H
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
None
Other Security
E-shutter
SERVICE
Base Warranty
1-year,
