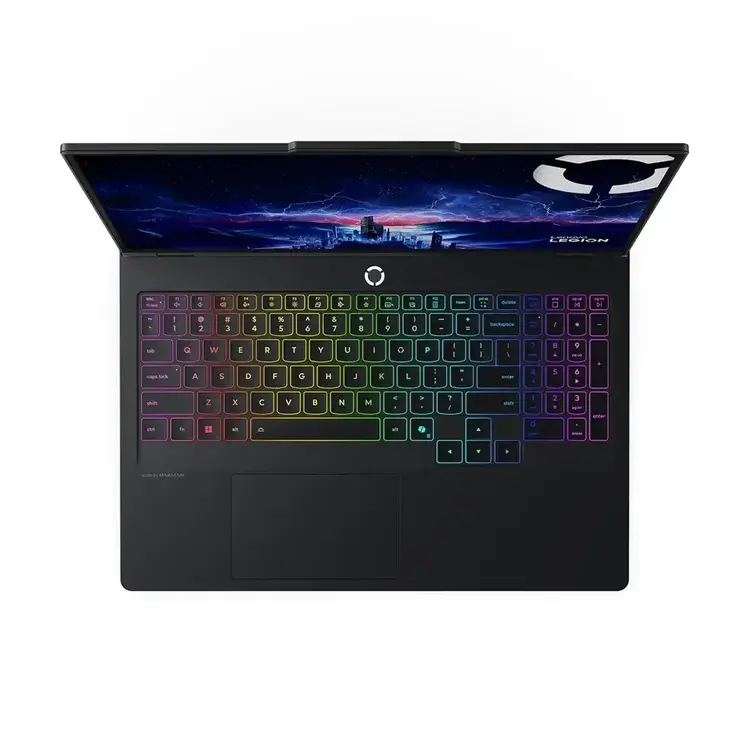

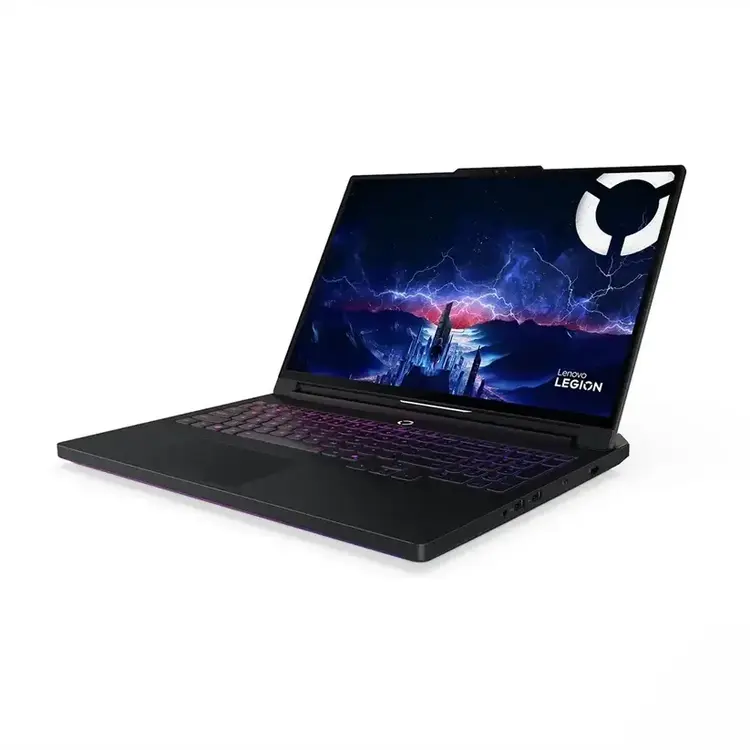

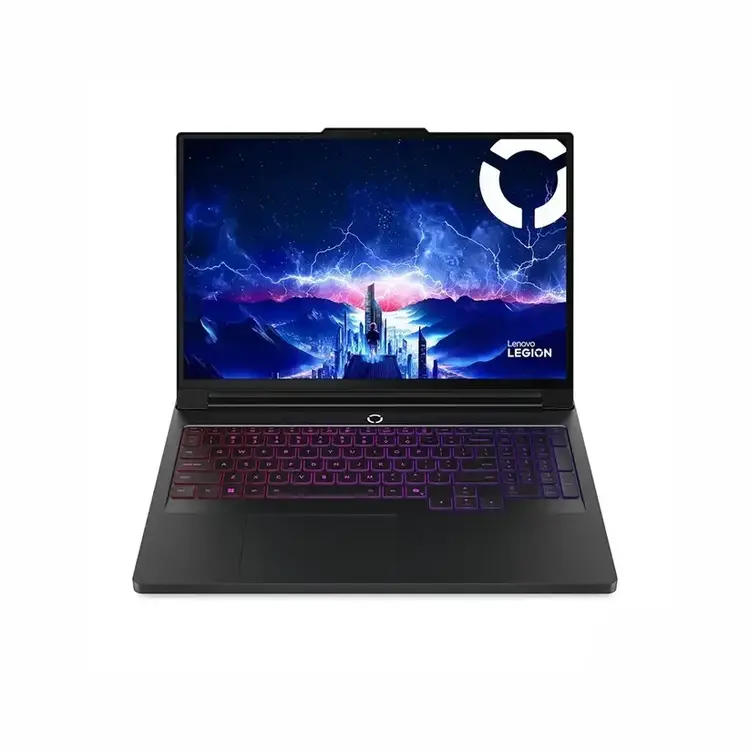

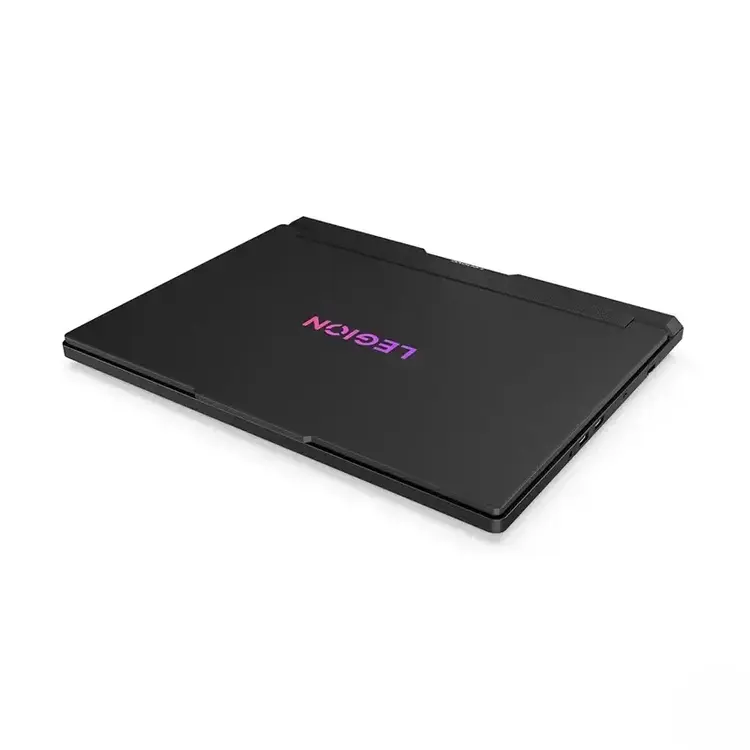

Lenovo Legion Pro 7 16IAX10H Ultra 9-290HX PLUS 32GB 1TB 16 WQXGA OLED RTX 5080 WIN 11
The full technical specifications for the Lenovo Legion Pro 7i Gen 10 (16″ Intel), specifically model number , are detailed below. This configuration represents an upgraded mid-generation refresh featuring Intel’s desktop-class Arrow Lake-HX processor architecture alongside NVIDIA’s high-performance Blackwell graphics.
Core Performance
-
- Processor: Intel® Core™ Ultra 9 290HX Plus (24 Cores / 24 Threads, Performance Cores up to 5.50 GHz, Efficient Cores up to 4.70 GHz)
- Graphics: NVIDIA® GeForce RTX™ 5080 Laptop GPU (16GB GDDR7 discrete memory, Max TGP up to 175W, 1334 Peak AI TOPS, supports DLSS 4 and Frame Generation) [
- NPU / AI System: Integrated Intel® AI Boost + Dedicated LA3 Hardware AI Chip (Lenovo AI Engine+ for real-time power deployment optimization) [
- Memory: 32 GB DDR5-6400MT/s (2 x 16 GB dual-channel CSODIMM format, expandable up to 64 GB) [
- Storage: 1 TB M.2 2280 NVMe SSD (PCIe Gen5 x4 Performance TLC interface; secondary dual M.2 slot available supporting PCIe Gen4 x4 up to 2TB) [
- Chipset: Intel® HM870 Chipset
Display & Audio
-
- Screen: 16-inch PureSight Gaming OLED
- Resolution: WQXGA (2560 x 1600), 16:10 Aspect Ratio
- Refresh Rate & Response: 240Hz / sub-0.5ms grey-to-grey latency
- Brightness & Colors: 500 nits typical / 1100 nits peak, 100% DCI-P3 color gamut, Glossy finish
- Certifications: VESA DisplayHDR™ True Black 1000, Dolby Vision®, NVIDIA® G-SYNC®, TÜV Rheinland® Low Blue Light & Flicker-Free
- Audio: 4x Stereo Speakers (2W x2 Woofers + 2W x2 Tweeters) powered by Realtek® ALC3306 and optimized with Nahimic Audio
Thermal & Power Design
-
- Cooling System: Legion Coldfront Vapor Chamber featuring an integrated Hyper Chamber system, dual turbo-charged fans, and up to a 250W sustained TDP capacity.
- Battery: 99.9 Whr high-capacity Lithium-Polymer (Supports Super Rapid Charge)
- Power Supply: 400W Slim Tip (3-pin) AC power adapter [
Connectivity & Ports
-
- Wireless: Wi-Fi® 7 (802.11be, 2×2) + Bluetooth® 5.4
- Wired LAN: 2.5 Gigabit Ethernet (RJ-45)
- I/O Ports:
-
- 1x Thunderbolt™ 4 / USB4® 40Gbps (Supports data transfer and DisplayPort™ 2.1)
- 1x USB-C® 3.2 Gen 2 (10Gbps, supports USB Power Delivery 95W-100W & DisplayPort™ 2.1
- 1x USB-A 3.2 Gen 2 (10Gbps, Always On / Sleep and Charge)
- 2x USB-A 3.2 Gen 1 (5Gbps)
- 1x HDMI® 2.1 (Outputs up to 8K @ 60Hz)
- 1x 3.5mm Headphone / Microphone combo audio jack [
-
Design & Software
- Chassis: Aerospace-grade Aluminum alloy top and bottom panels
- Color: Eclipse Black
- Keyboard: Full-sized Legion TrueStrike keyboard with per-key RGB backlighting and a dedicated numpad
- Webcam: 5.0MP fixed-focus camera with hardware E-shutter privacy switch
- Dimensions: 364.38 x 275.94 x 21.9 to 26.65 mm (14.35″ x 10.86″ x 0.86″ to 1.05″)
- Weight: Starting at 2.57 kg (5.67 lbs)
- Operating System: Windows® 11 Home 64-bit
