Description

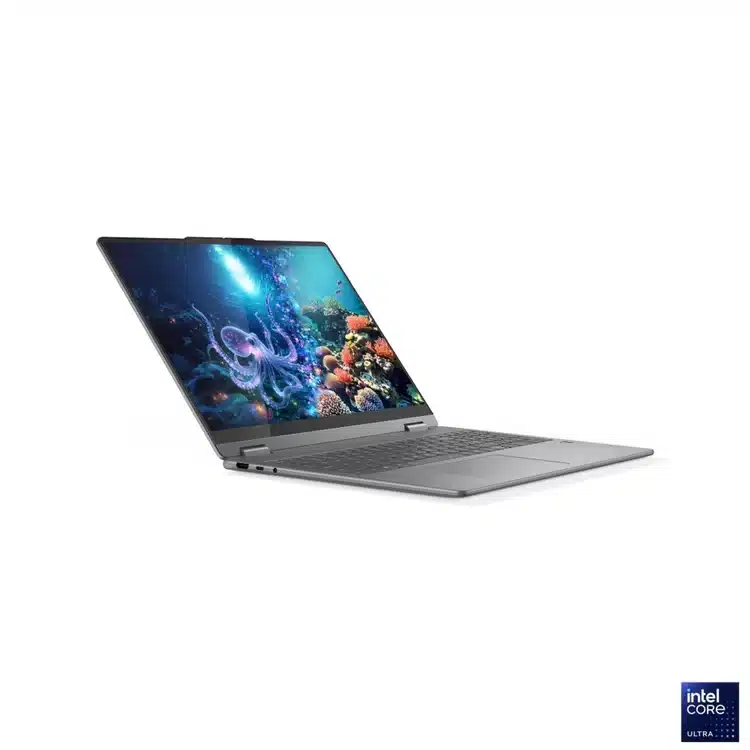

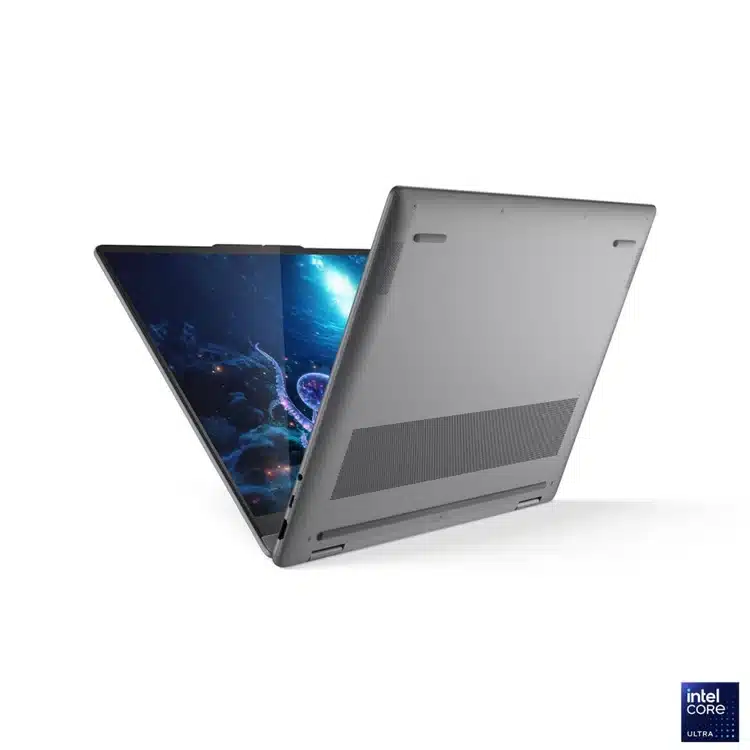

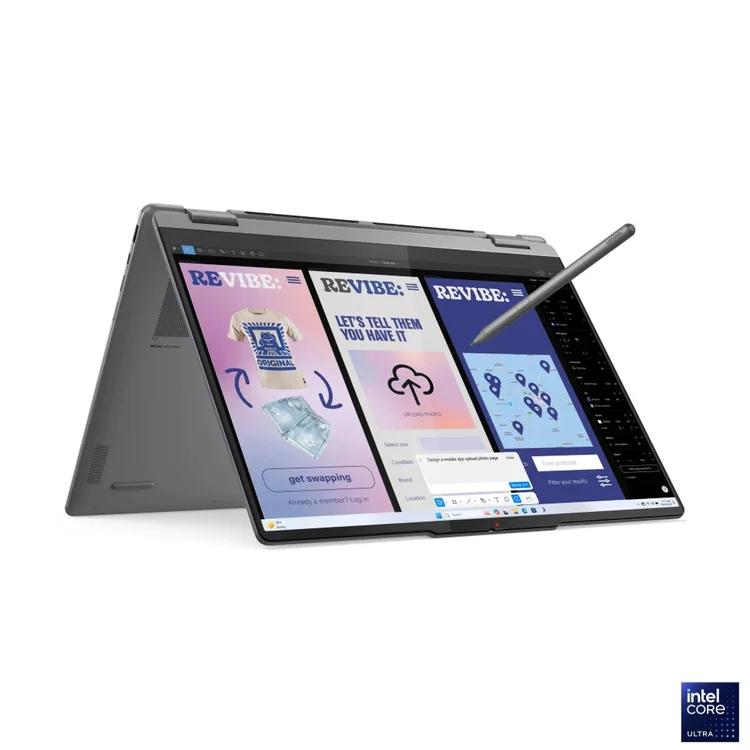

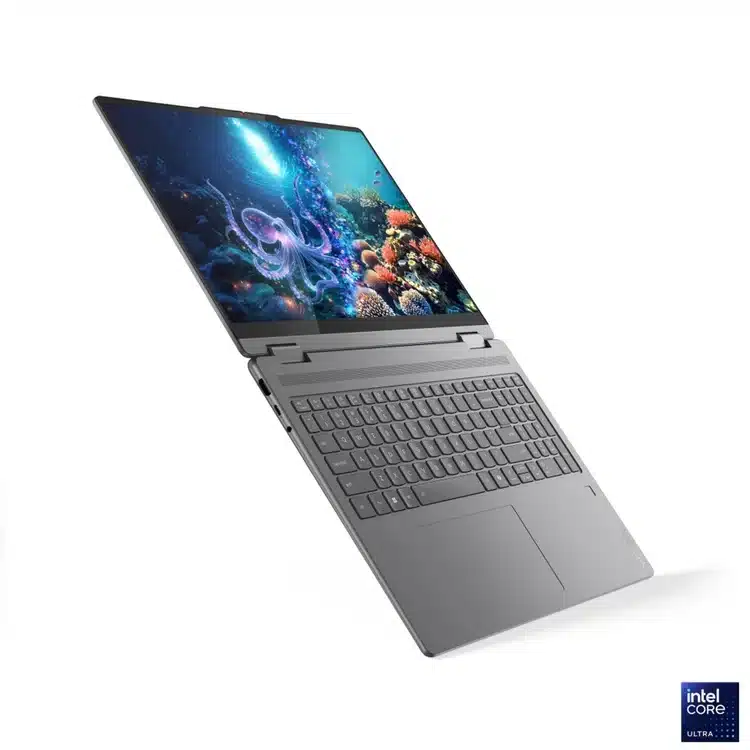

LENOVO YOGA 7 16ILL10 83JT0001US    Core™ ULTRA 7 256V 16GB DDR5  1TB NVME EN 16″ WUXGA (1920×1200)X360 TOUCHSCREEN INTEL ARC 140V WIN 11 / LUNA GREY

Processor
Intel® Core Ultra 7 256V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB
AI PC Category
Copilot+ PC
NPU
Integrated Intel® AI Boost, up to 47 TOPS
Graphics
Integrated Intel® Arc™ Graphics 140V
Chipset
Intel® SoC Platform
Memory
16GB Soldered LPDDR5x-8533, MoP Memory
Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Max Memory
16GB soldered memory, not upgradable
Storage
1TB SSD M.2 2242 PCIe® 4.0×4 NVMe®
Storage Slot
One M.2 2242 PCIe® 4.0 x4 slot
Max Storage Support
One drive, up to 1TB M.2 2242 SSD
Card Reader
microSD Card Reader
Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers
4 stereo speakers, 2W x2 (woofers), 2W x2 (tweeters), optimized with Dolby Atmos®, Smart Amplifier (AMP)
Microphone
4x, Array
Camera
FHD 1080p + IR with Privacy Shutter
Battery
70Wh
Power Adapter
65W USB-C® (3-pin)
DESIGN
Display
16″ WUXGA (1920×1200) IPS 300nits Glossy / Anti-fingerprint, 45% NTSC, 60Hz, Dolby Vision®, TÜV Low Blue Light, Glass, Touch
Touchscreen
OGM, 10-point Multi-touch
Screen-to-Body Ratio
90.24% AAR (active area ratio)
Color Calibration
None
Pen
Pen Upgradable (Purchase Separately)
Keyboard
Backlit, English
Touchpad
Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 80 x 135 mm (3.15 x 5.31 inches)
Dimensions (WxDxH)
361 x 257 x 15.85 mm (14.21 x 10.11 x 0.62 inches)
Weight
Starting at 1.92 kg (4.23 lbs)
Case Color
Luna Grey
Case Material
Aluminium (Top), Aluminium (Bottom)
Surface Treatment
Aluminium Stamping (Anodized with Sandblasting)
SOFTWARE
Operating System
Windows® 11 Home, English
Bundled Software
Office Trial
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 7, 802.11be 2×2 + BT5.4
WWAN
Non-WWAN
Ethernet
No Onboard Ethernet
Standard Ports
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 1.4b
1x Headphone / microphone combo jack (3.5mm)
1x microSD card reader
Docking
Various docking solutions are supported via Thunderbolt™.
For more compatible docking solutions, please visit Docking for Yoga® 7 2-in-1 16ILL10
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0
Fingerprint Reader
Touch Style, on Palm Rest
Other Security
Camera privacy shutter
IR camera for Windows® Hello (facial recognition)
