ASUS ROG NUC 16 Edition 20 Windows 11 Home Intel® Core™ Ultra 9 Processor 290HX Plus ,cTDP 45-160W
$9,999.0
In Stock
SKU
RNUC16JNK9X8ADA66DD3AHR
Categories Asus accessories, Gaming Laptops, Laptop & PC Accessories
Tags ASUS ACCESSORIES, Desktop Gaming, NUC
Description
ASUS ROG NUC 16 Edition 20 Windows 11 Home Intel® Core™ Ultra 9 Processor 290HX Plus ,cTDP 45-160W

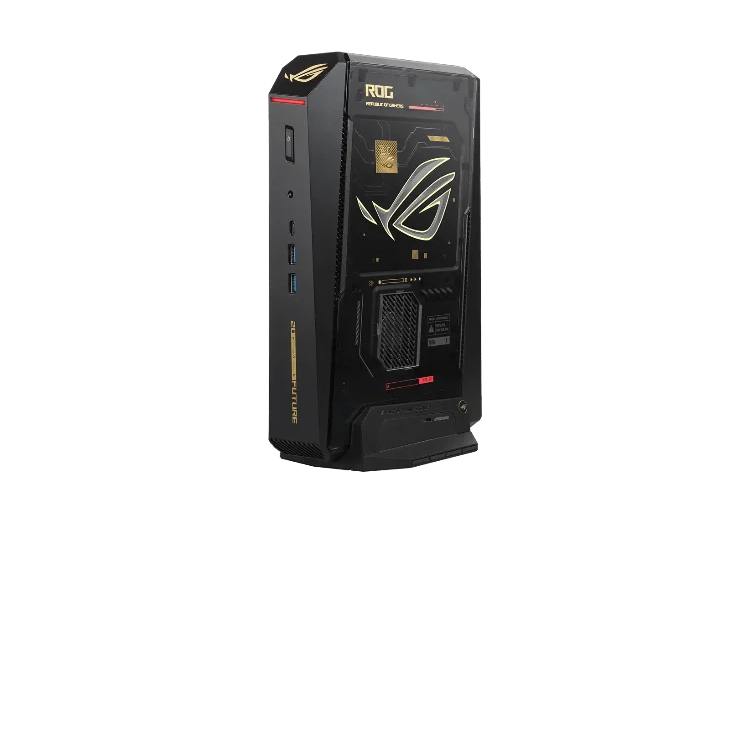

The ASUS ROG NUC 16 Edition 20 is a flagship, limited-edition 3-liter gaming mini PC built to commemorate the 20th anniversary of the Republic of Gamers (ROG). It pairs Intel’s massive-core mobile architecture with an ultra-high-end discrete laptop graphics card in a semi-transparent, toolless chassis. [1]
Here are the complete specifications for this exact configuration:
Core Performance
-
- Operating System: Windows 11 Home [1]
- Processor: Intel® Core™ Ultra 9 Processor 290HX Plus
-
- Core Count: 24 Cores (8 Performance Cores, 16 Efficiency Cores)
- Clock Speed: 2.7 GHz base up to 5.5 GHz Max Turbo frequency
- Cache: 36 MB L3 Cache
- Processor Power (cTDP): Highly configurable 45W to 160W envelope
-
- Dedicated AI NPU: Integrated Intel AI Boost NPU (Up to 13 TOPS) [
- Chipset: Intel® HM870 Chipset
Graphics & Video Output
-
- Discrete Graphics: NVIDIA® GeForce RTX™ 5090 Laptop GPU
-
- Video Memory: 24GB GDDR7 VRAM
- Maximum Graphics Power: Up to 175W TGP (Total Graphics Power)
- Architecture Features: NVIDIA Blackwell architecture, DLSS 4.5 support, and dedicated Ray Tracing hardware
-
- Display Support: Supports up to 5 simultaneous independent displays (up to 4K resolutions or 8K@60Hz single display output) [
- Discrete Graphics: NVIDIA® GeForce RTX™ 5090 Laptop GPU
Memory & Storage
-
- System Memory: 64GB DDR5-6400 MHz RAM included (Configured as 2x 32GB dual-channel CSO-DIMM modules)
-
- Expandability: 2x user-replaceable SODIMM/CSODIMM slots supporting up to 128GB max capacity
- Storage Included: 2TB M.2 NVMe PCIe Gen 5.0 SSD [1
-
- Storage Expansion Slots: 3x total M.2 2280 slots
-
- Supports expansion across an extra PCIe 4.0 x4 slot and an additional PCIe 5.0 x4 slot
-
- System Memory: 64GB DDR5-6400 MHz RAM included (Configured as 2x 32GB dual-channel CSO-DIMM modules)
Connectivity & Networking
-
- Wireless Network: Intel® Killer™ Wi-Fi 7 (BE1750x / BE200 2×2)
- Bluetooth: Bluetooth® 5.4 wireless card
- Wired LAN: Realtek 2.5G Ethernet (2.5 Gbps) controller port [
Input / Output (I/O) Ports
-
- Front Panel:
-
- 1x USB-C 3.2 Gen 2×2 port (up to 20 Gb/s)
- 2x USB 3.2 Gen 2 Type-A ports
- 1x SD Express 8.0 / SD Card Reader (UHS-I)
- 1x 3.5mm Combo Headset Audio Jack
-
- Rear Panel:
-
- 1x Thunderbolt™ 4 Type-C port (Supports DisplayPort 2.1)
- 2x USB 3.2 Gen 2 Type-A ports
- 2x USB 2.0 Type-A ports
- 1x HDMI 2.1 FRL port
- 2x DisplayPort 2.1 outputs
- 1x RJ45 2.5G LAN port
- 1x DC-in Power Connector
- 1x Kensington Lock slot
-
- Front Panel:
Thermal Design & Chassis
-
- Cooling Solution: QuietFlow / QuietCooling architecture
-
- Driven by a triple-fan layout
- Paired with a unified dual-vapor-chamber block dissipating up to 300W total thermal capacity [
-
- Chassis Design: 3-liter compact system featuring an obsidian semi-transparent outer shell accented by 20th-anniversary gold and red tracing.
- Placement Flexibility: Includes a removable vertical/horizontal stand with an integrated G-sensor for smart interface auto-orientation.
- Maintenance: Toolless layout utilizing a front-facing panel thumbscrew for rapid interior memory/SSD access
- Cooling Solution: QuietFlow / QuietCooling architecture
Physical Specs & Power
- Dimensions: 282.5 mm x 189.5 mm x 56.5 mm
- Weight: Approx. 3.2 kg (7.05 lbs)
- Power Supply: External 380W high-output power adapter (20V DC, 19A output)
