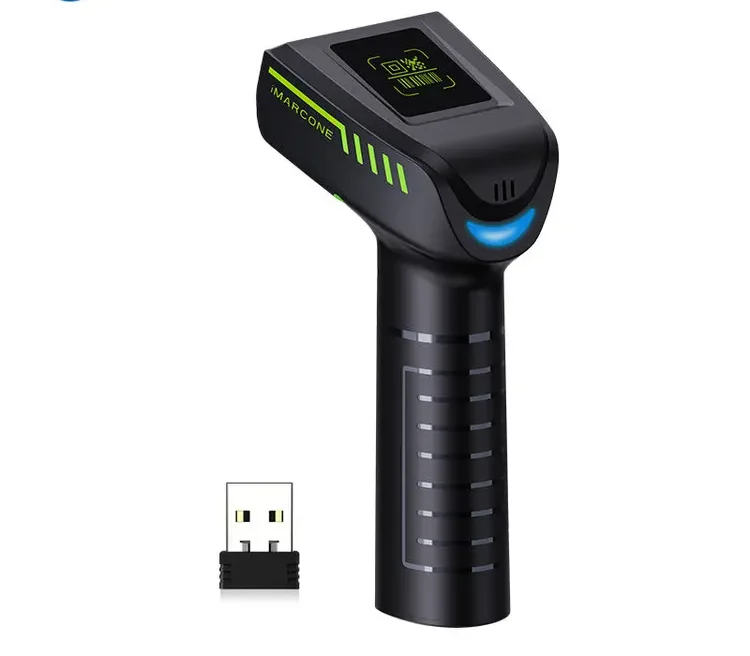

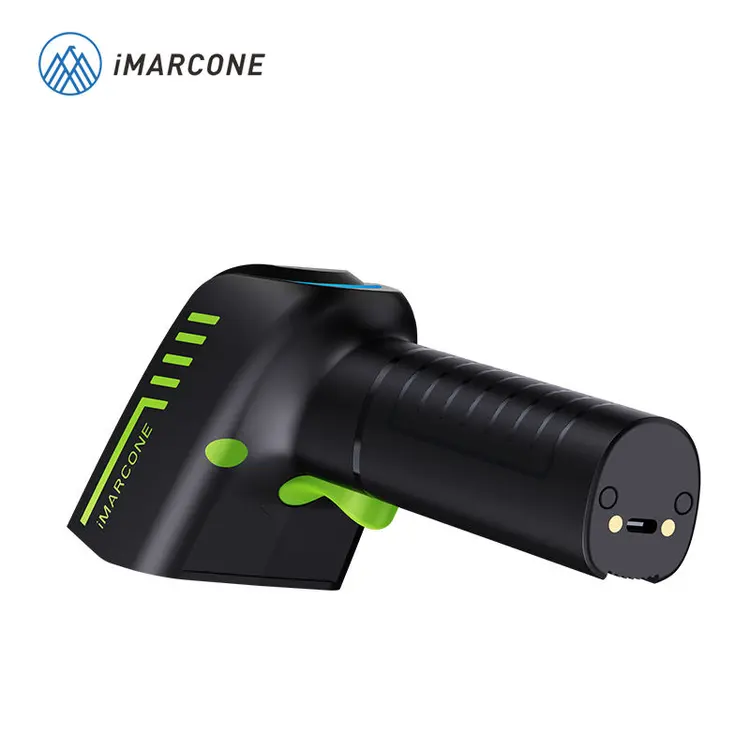

SMART POS 2D Wireless Barcode Scanner Product Feature 1. Quick and accurate reading of universal 1D/2D

MART POS 2D Wireless Barcode Scanner Product Feature 1. Quick and accurate reading of universal 1D/2D code 2. Compatible with Linux, Android, MAC, Windows XP/7/8/10 3. 350,000 characters can be stored in inventory storage mode 4. 80 meters tranmission distance in open area via wireless Technical Specification Performance parameter Light source type: Red LED aiming light, white LED illumination light Decoding ability: 1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、 Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、MSI-Plessey、Standard 2 of 5、Plessey、China Post、Code 16K、Code 49、Limited RSS、Expanded RSS、RSS-14、ISBN 2D: QR、PDF417、DataMatrix、Aztec、12345678A、HanXin、Maxicode、 Micro QR、Micro PDF417 Scan type: CMOS Resolution: 640×480 Scan mode: Manual mode/Continuous mode/Automaitc mode Scan angle: Elevation ± 60°, Rotation 360°, Yaw ± 60° Precision: ≥4mil Depth of field: 30-220mm(EAN13,13mil) Printing contrast: ≥20% Error：1/5million Prompt mothod：Buzzer, LED, Vibration Viewing angle：Horizontal 32° (H), Vertical 24° (V) Wireless parmeter Wireless communication: 2.4G Transmission distance: 80 meters (Open Area) Storage mode: Timely mode, inventory storage mode, (Storage capacity of 350000 characters) Pairing mode: Receiver: One-to-one Interface: USB-HID, USB-COM Environmental parameter Working temperature: -10°C~60°C Storage temperature: -20°C~70°C Humidity: 5%~95% RH （No condensation) Shock resistance: Passed 1.5meters drop test Physical parameter Weight: 175g Dimension: 114.3mm×65.8mm×150.7mm Material quality: ABS+PC Cable length: 1m Electrical Parameter Voltage: DC5V±5% Current: 160mA Battery capacity: 1500mAh Charging time: 3h Working hours: 8h Charging method: TYPE-
