Description

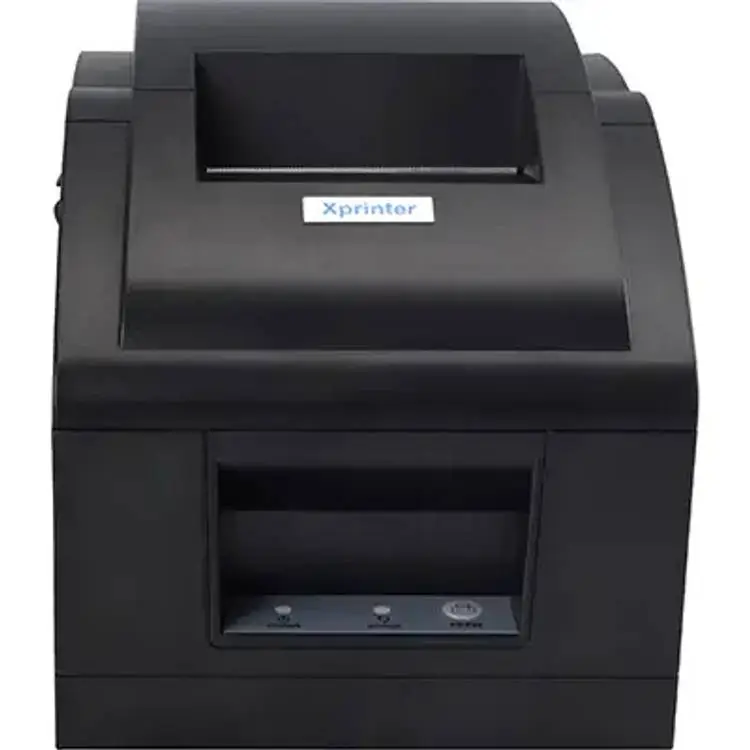

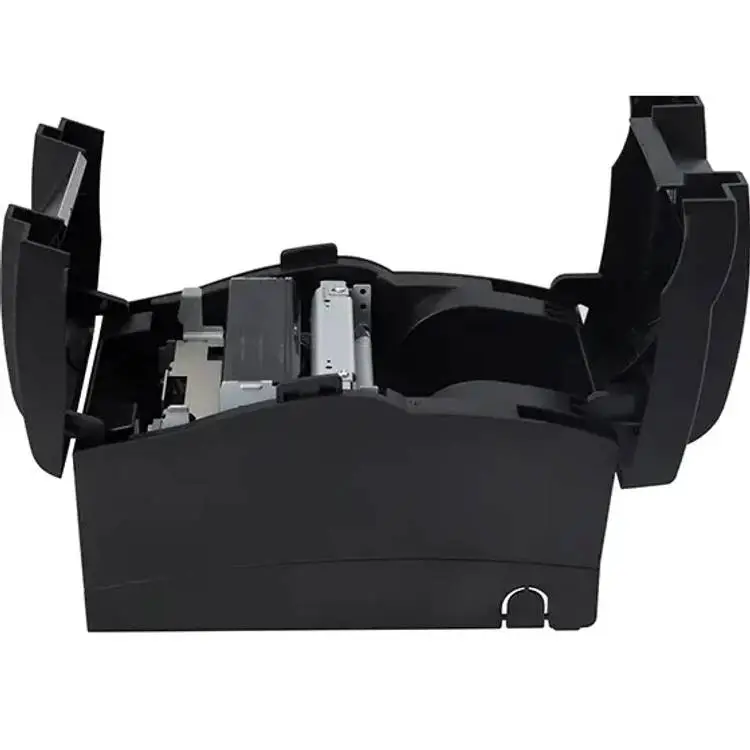

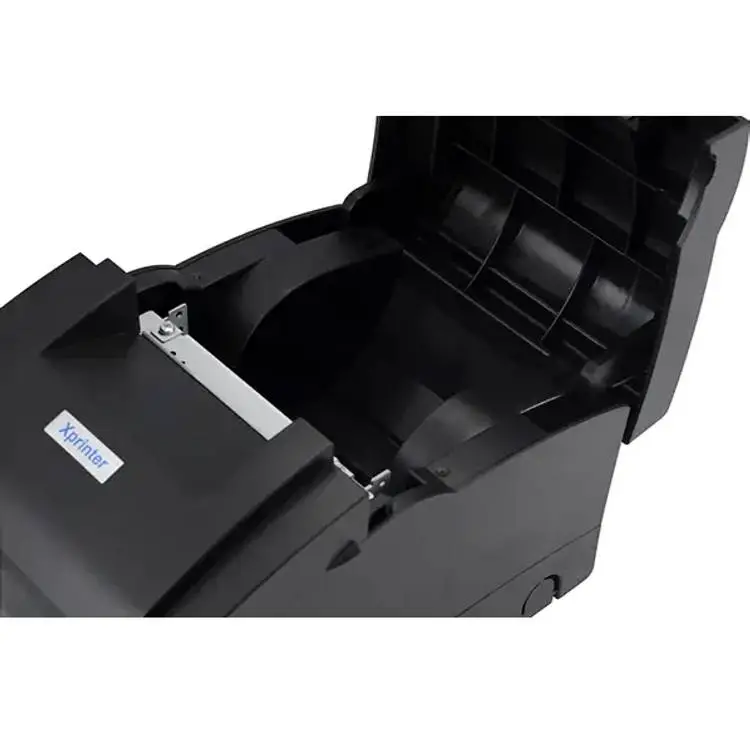

THERMAL RECEIPT PRINTER 76MM DOT MATRIX

Impact Dot Matrix receipt printer
Impact Dot Matrix
Printing speed up to 4.5 lines/s
76mm paper size
USB + Lan

• • Print Technology: 9-Pin serial impact dot-matrix printing
  • Print Speed: 4.5 lines per second
  • Print Width: 63.5 mm max print area
  • Print Resolution: 203 DPI / 400 dots per line
  • Print Direction: Supports bi-directional printing for enhanced text speed
  • Sensor Capabilities: Equipped with a built-in black mark orientation sensor (ideal for custom bills/invoices)

• • Paper Width Compatibility: Supports standard 75.5±0.5mm roll sizes. Can physically feed 58mm and 70mm configurations depending on regional spacers.
  • Maximum Roll Diameter: φ 80 mm max outer diameter
  • Line Spacing: 4.23 mm default (software adjustable via commanD
  • Auto Cutter: Built-in auto cutter (partial cut functionality) rated for up to 1 million cuts [

• • Ribbon Model: Uses standard ECR-9 Ribbon cassette ]
  • Column Capacity:
    • • Font A (1.6 × 3.1 mm): 32 columns (9×9 dots configuration)
      • Font B (1.2 × 3.1 mm): 42 columns (7×9 dots configuration)
      • Chinese / Traditional (2.7 × 2.7 mm): 16 columns (16×16 dots configuration)

  • Character Extensions: GB18030 Simplified Chinese, Traditional Chinese, and multiple international language sheets (PC347, Katakana, PC850, PC860, PC863, PC865)

• • Interfaces: Most models ship configured with USB + Ethernet LAN dual interfaces. Interface-specific models can also include Parallel, Serial, or Bluetooth expansion slots
  • Cash Drawer Port: RJ11 connection output delivering DC 24V / 1A driving capacity. [
  • Power Supply Adapter:
    • • Input: AC 100V–240V, 50–60Hz
      • Output: DC 24V / 2.5A power brick

• Physical Dimensions: Approximately 230 mm (D) × 150 mm (W) × 138 mm (H)
• Device Weight: ~1.36 kg to 1.5 kg net weight depending on interface model
• Print Head Longevity: Rated for 10 million lines of text output
