Description

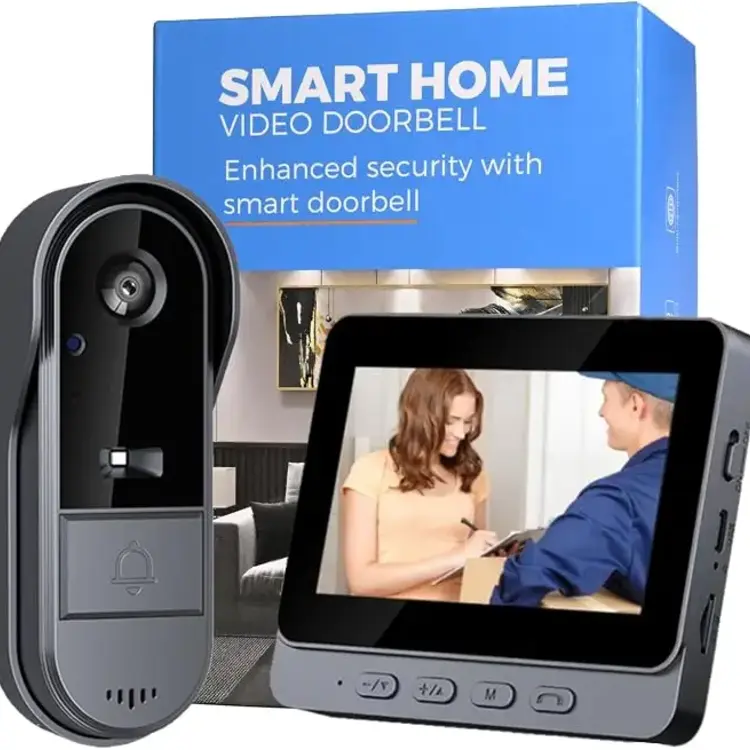

Video Doorbells featuring a black camera unit and a separate indoor monitor
| Feature | Specification Details |
|---|---|
| Display Screen | 4.3-inch LCD / IPS Color Monitor |
| Connectivity | Local 2.4GHz Private Wireless Signal (Non-WiFi System ) |
| Transmission Range | Up to 80 meters in open spaces (~30 meters through standard interior walls) |
| Power Source | Rechargeable Built-in Lithium Batteries |
| Battery Capacities | Outdoor Doorbell unit: 800mAh | Indoor Monitor display: 400mAh |
| Charging Port | Type-C interface (approx. 1.5 hours to fully charge) |
| Local Storage Expansion | Supports standard TF / MicroSD cards up to 128GB (for automated capture & video log) |
| Night Vision | Automatic Infrared (IR) LEDs for clear black-and-white visibility in total darkness |
| Audio Function | Live Two-Way Audio Communication (intercom functionality via monitor control buttons) |
| Device Weight | Doorbell: 52g | Monitor Display: 131g | Total package net weight: 185g |
| Doorbell Dimensions | 107mm × 42mm × 18.5mm |
| Monitor Dimensions | 120mm × 95.4mm × 17mm |
Core Highlights & Installation Notes
- Zero Network Dependency: The outdoor camera transmits encrypted footage directly to the hand-held monitor base. This offers 100% data privacy since no cloud servers are used.
- Energy Management: The monitor is built with an auto-power-saving mode that automatically shifts into sleep after 30 seconds of idleness to conserve battery power.
- Installation Warning: For optimal performance, do not mount the camera unit directly onto metal doors or metallic surfaces , as metal heavily degrades the radio frequency, shrinking the operational signal range down to around 20 meter
Video Doorbells featuring a black camera unit and a separate indoor monitorTransmission Frequency 433.92 MHz Radio Frequency (RF) (Zero Wi-Fi or Internet required)
Transmission Range Up to 50 Meters of high-penetration signal depth through structural barriers
Doorbell Unit Power Built-in rechargeable Lithium battery (Micro-USB or USB-C Charging interface)
Indoor Monitor Power Direct plug-in power or matching built-in secondary rechargeable cell
Storage & Logging Auto-overwriting cyclical local flash cache (Saves temporary snapshot logs internally upon button click)
Media Output Digital LCD TFT screen resolution display optimized for point-to-point feed streaming
Hardware Functionality Layout* RF Signal Penetration: Custom tailored for harsh environments, punching clean data cycles through Steel Doors, Hardwood Frames, and Heavy Brick/Concrete Walls without packet dropouts.
* Point-to-Point Syncing: Operates via a factory-coded RF bridge linking the exterior doorbell switch panel directly to your indoor digital console monitor.
* Zero-Config Security: Protects against external network hacking vulnerabilities and eliminates latency delays caused by slow routers or app server configurations.
* Automatic Wake-on-Press: Stays in an ultra-low power deep standby mode until a visitor triggers the button, immediately pushing the live video and snapshots to the display screen within milliseconds.
